61678 and 41749/41750 overlap
#1
Looks like we need to adjust either 61678 or 41479/41750 as they currently overlap and shouldn't.

Reply
RE: 61678 and 41749/41750 overlap
#2
(2020-03-24, 19:06)Orion Pobursky Wrote: Looks like we need to adjust either 61678 or 41479/41750 as they currently overlap and shouldn't.
Tricky one Sad
official parts, patterned/stickered parts, other compatibility to consider...
Reply
RE: 61678 and 41749/41750 overlap
#3
(2020-03-24, 19:55)Philippe Hurbain Wrote: Tricky one Sad
official parts, patterned/stickered parts, other compatibility to consider...

Probably 61678 that needs to be adjusted.

Looks like 1 pattern and 4 stickers for 61678 (plus shortcuts)
Reply
RE: 61678 and 41749/41750 overlap
#4
(2020-03-24, 20:57)Orion Pobursky Wrote: Probably 61678 that needs to be adjusted.

If that one changes, the similar part 39606 need the same change too.
Reply
RE: 61678 and 41749/41750 overlap
#5
(2020-03-24, 22:21)Magnus Forsberg Wrote: If that one changes, the similar part 39606 need the same change too.

Which part do you mean? I cannot find 39606.
Reply
RE: 61678 and 41749/41750 overlap
#6
(2020-03-24, 23:33)Gerald Lasser Wrote: Which part do you mean? I cannot find 39606.

Sorry. I flipped the two first digits. I mean 93606. It's the 2x4 version of 61678.
Reply
RE: 61678 and 41749/41750 overlap
#7
I propose to modify the top (and side chrd) of 93606/61678 using the following procedure:
- Rotate it by arcsin(20/80)=14.4775°
- scale the curve in y direction by 0.7644
- Rotate back by -14.4775°
This way we flatten the curve and follow the one of 41750. Benefit of using a mathematical procedure is that we can apply it to patterns without breaking them.
Code:
1 16 10 116.29494599103998803316728557974 31.490267046659552477501919974163 0 -20 0 -116.29494599103998803316728557964 0 9.122478426125247757831783698656 8.509732953340447522498080025883 0 -157.64458619863203130008139786518 48\1-12cylo.dat
What do you think?
Reply
RE: 61678 and 41749/41750 overlap
#8

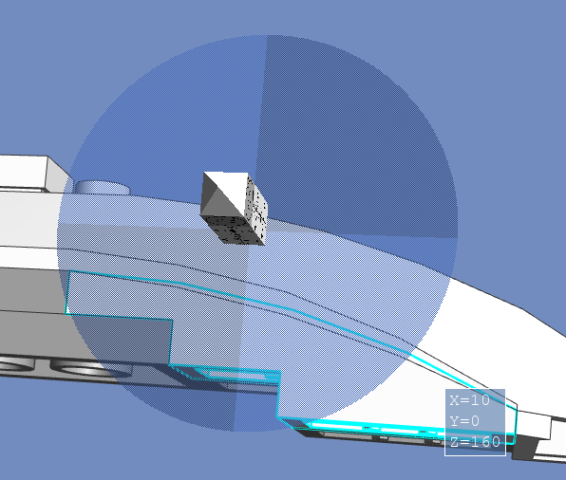

I think there is more to this:

It seems that 46413 and 41749 are done with 42022 in mind
45705 looks to be more in line with 61678

Do we need to change 45705 as well?


Code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 42022.dat
1 16 20 0 -60 1 0 0 0 1 0 0 0 1 61678.dat

1 16 190 0 -60 1 0 0 0 1 0 0 0 1 46413.dat
1 2 160 24 -60 1 0 0 0 1 0 0 0 1 42022.dat

1 16 200 -80 -60 1 0 0 0 1 0 0 0 1 41749.dat
1 2 160 -56 -60 1 0 0 0 1 0 0 0 1 42022.dat

1 16 210 -160 -60 1 0 0 0 1 0 0 0 1 45705.dat
1 2 160 -136 -60 1 0 0 0 1 0 0 0 1 42022.dat

1 16 300 0 -290 1 0 0 0 1 0 0 0 1 46413.dat
1 14 270 24 -350 1 0 0 0 1 0 0 0 1 61678.dat

1 16 310 -80 -290 1 0 0 0 1 0 0 0 1 41749.dat
1 14 270 -56 -350 1 0 0 0 1 0 0 0 1 61678.dat

1 16 320 -160 -290 1 0 0 0 1 0 0 0 1 45705.dat
1 2 270 -136 -350 1 0 0 0 1 0 0 0 1 61678.dat
Reply
RE: 61678 and 41749/41750 overlap
#9
I guess so... Sad
Reply
RE: 61678 and 41749/41750 overlap
#10
(2020-03-25, 17:36)Philippe Hurbain Wrote: I guess so... Sad

Any more interactions of those parts? Trying to think which other ones would be affected.

I will scan both parts tomorrow, to check the exact measurement.
Reply
RE: 61678 and 41749/41750 overlap
#11

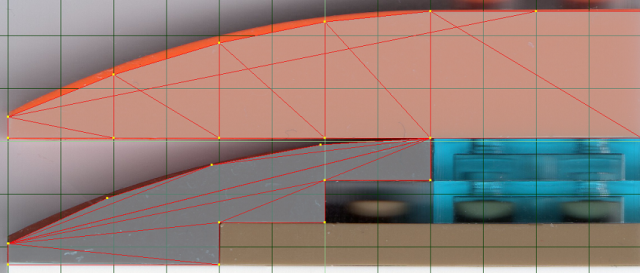

Here's the overlay, looks like the 4 x 1 is closer to the original

Reply
RE: 61678 and 41749/41750 overlap
#12
(2020-03-26, 13:41)Gerald Lasser Wrote: Here's the overlay, looks like the 4 x 1 is closer to the original

41749/41750 are now in the PT and in need of an overhaul.
https://www.ldraw.org/cgi-bin/ptdetail.c...749s01.dat

How should we continue?
Reply
RE: 61678 and 41749/41750 overlap
#13
I would go for an adaptation toward the curve of the 61678 (1 x 4)

There are no stickered parts in the library for 42022/41762, so also adapting those would not be too much of an impact, or did I overlook something?
Reply
