Neu Bugatti Technic Parts


Neu Bugatti Technic Parts
#1
37383: Wheels 62.3X42 37383 (DXF will follow)
https://m.rebrickable.com/media/cache/69...4bf5f9.jpg

35189: Brake Disc
https://m.rebrickable.com/media/cache/4e...f4abb0.jpg


35185: ANGLED GEAR WHEEL Z20 (Combination of 18575 and 18946)
https://m.rebrickable.com/media/cache/b7...3b9305.jpg


98138pr0039 Tile Round 1 x 1 with Bugatti Logo print
https://m.rebrickable.com/media/cache/6b...0cdac6.jpg


35188 GEAR SHIFTER, W/ CROSS HOLE
https://m.rebrickable.com/media/cache/a7...6d0c89.jpg

35186: Technic Driving Ring Extension 8 Tooth
https://m.rebrickable.com/media/cache/c0...44418c.jpg
Reply
RE: Neu Bugatti Technic Parts
#2
(2018-06-07, 19:34)Thorsten Wrote: 37383: Wheels 62.3X42 37383 (DXF will follow)
https://m.rebrickable.com/media/cache/69...4bf5f9.jpg

35185: ANGLED GEAR WHEEL Z20 (Combination of 18575 and 18946)
https://m.rebrickable.com/media/cache/b7...3b9305.jpg

98138pr0039 Tile Round 1 x 1 with Bugatti Logo print
https://m.rebrickable.com/media/cache/6b...0cdac6.jpg

35188 GEAR SHIFTER, W/ CROSS HOLE
https://m.rebrickable.com/media/cache/a7...6d0c89.jpg

35186: Technic Driving Ring Extension 8 Tooth
https://m.rebrickable.com/media/cache/c0...44418c.jpg
http://www.ldraw.org/cgi-bin/ptdetail.cg.../35185.dat Wink
Reply
RE: Neu Bugatti Technic Parts
#3
Wow... that was really fast. Thanks
Reply
RE: Neu Bugatti Technic Parts
#4
(2018-06-07, 20:01)Thorsten Wrote: Wow... that was really fast. Thanks
No rocket science, I started before you asked Big Grin  (https://www.eurobricks.com/forum/index.p...w-library/)
BTW, could you get me photos of the rotary chageover (top/bottom/right/front)? There are many available on the web, but nothing in cartesian directions... And side photo of brake disc (with thickness)
Reply
RE: Neu Bugatti Technic Parts
#7

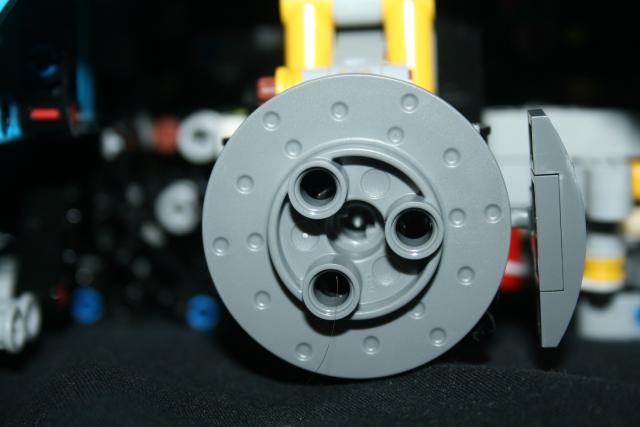

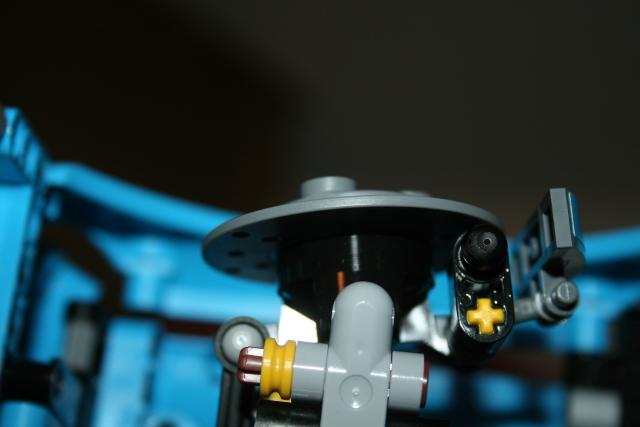

35189: Brake Disc

Front
D outside 42,5mm  height 1,5mm
D ring 24mm  height 4mm
D Pin out- 8mm and inside 5mm height 6mm

behind
D 22x0,5
DXF
https://bricksafe.com/files/Thorsten50/Brake%20Disk.dxf


Attached Files Thumbnail(s)

Reply
RE: Neu Bugatti Technic Parts
#9
(2018-06-09, 20:34)Thorsten Wrote: 35189: Brake Disc
Done! http://www.ldraw.org/cgi-bin/ptdetail.cg.../35189.dat
Reply
RE: Neu Bugatti Technic Parts
#5
Extension ring done: http://www.ldraw.org/cgi-bin/ptdetail.cg.../35186.dat
Reply
RE: Neu Bugatti Technic Parts
#6
[quote='Philippe Hurbain' pid='28806' dateline='1528459252']
Extension ring done: [url=http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/35186.dat]http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/35186.d

Thanks
Wheel dxf is not complet:
https://bricksafe.com/files/Thorsten50/wheels.dxf

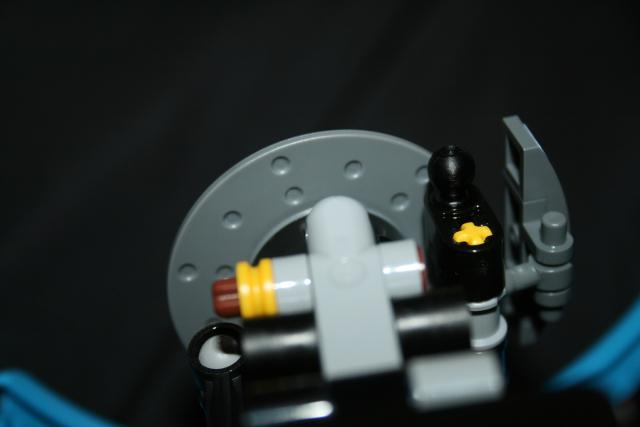

The bracke-Photo comes in a moment
Reply
RE: Neu Bugatti Technic Parts
#8
(2018-06-09, 19:59)Thorsten Wrote:
(2018-06-08, 12:00)Philippe Hurbain Wrote: Extension ring done: [url=http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/35186.dat]http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=parts/35186.d

Thanks
Wheel dxf is not complet:
https://bricksafe.com/files/Thorsten50/wheels.dxf

The bracke-Photo comes in a moment
Great, Thanks! I'll keep you in touch if I miss something for these parts. What about rotary changeover?
Reply
RE: Neu Bugatti Technic Parts
#10
Quote:Wheel dxf is not complet:
https://bricksafe.com/files/Thorsten50/wheels.dxf
I am missing some depth measurements...
- Distance between pins supporting disc (base of pins) and back of rim?
- Distance between front stud base and front of rim? And more generally, distance between the various elements of center 5 branch star and front of wheel.
Reply
RE: Neu Bugatti Technic Parts
#12
(2018-06-12, 14:20)Philippe Hurbain Wrote:
Quote:Wheel dxf is not complet:
https://bricksafe.com/files/Thorsten50/wheels.dxf
I am missing some depth measurements...
- Distance between pins supporting disc (base of pins) and back of rim?
- Distance between front stud base and front of rim? And more generally, distance between the various elements of center 5 branch star and front of wheel.

Thanks for the other parts

I know. Couldn't measure it yet. I hope I can make it to the weekend.
Reply
RE: Neu Bugatti Technic Parts
#13

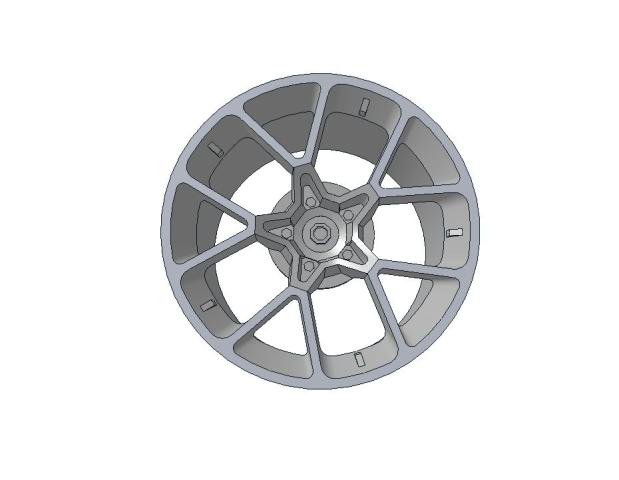

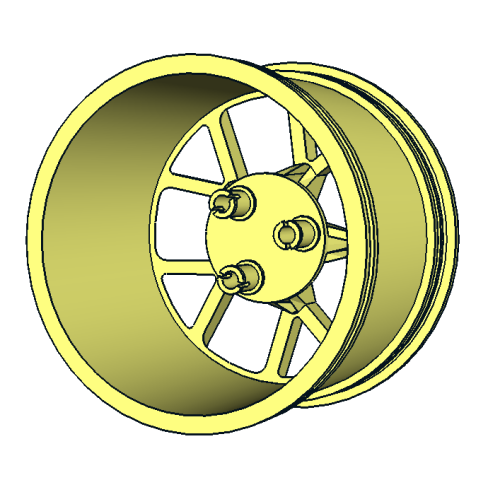

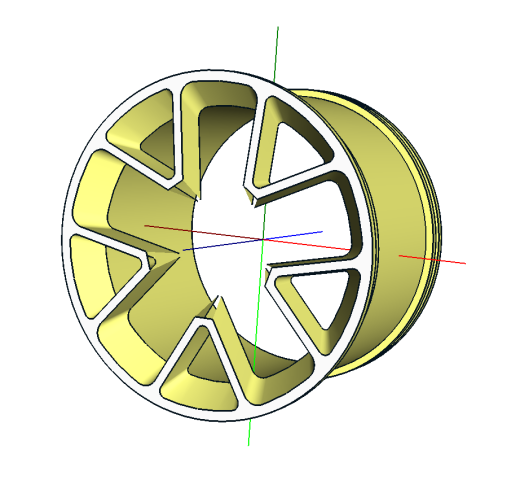

Done so far...


Attached Files Thumbnail(s)

Reply
RE: Neu Bugatti Technic Parts
#14
(2018-06-15, 15:12)Philippe Hurbain Wrote: Done so far...

Perfect timing. I got the rest ready
https://bricksafe.com/files/Thorsten50/wheels2.dxf
Reply
RE: Neu Bugatti Technic Parts
#15
(2018-06-15, 16:28)Thorsten Wrote:
(2018-06-15, 15:12)Philippe Hurbain Wrote: Done so far...

Perfect timing. I got the rest ready
https://bricksafe.com/files/Thorsten50/wheels2.dxf
Great, thanks!
Reply
RE: Neu Bugatti Technic Parts
#16

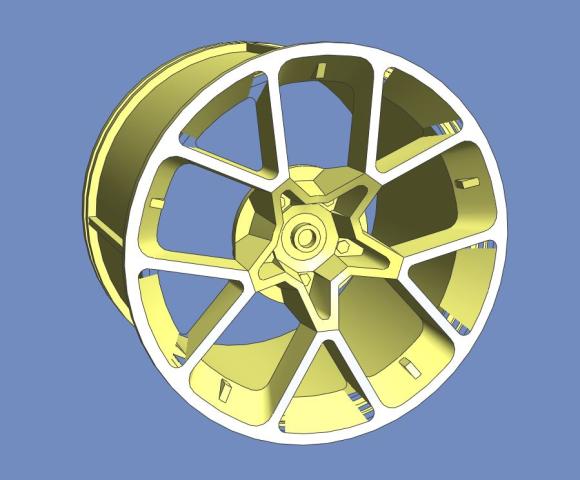

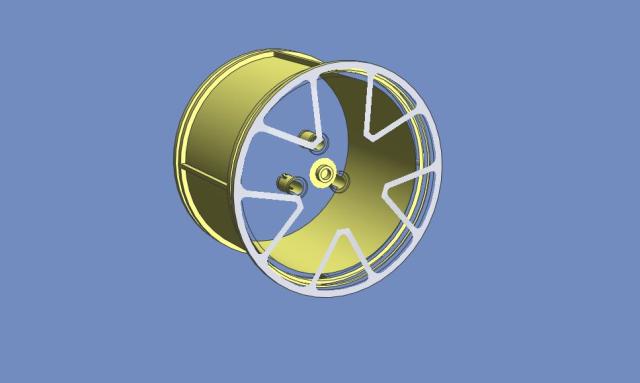

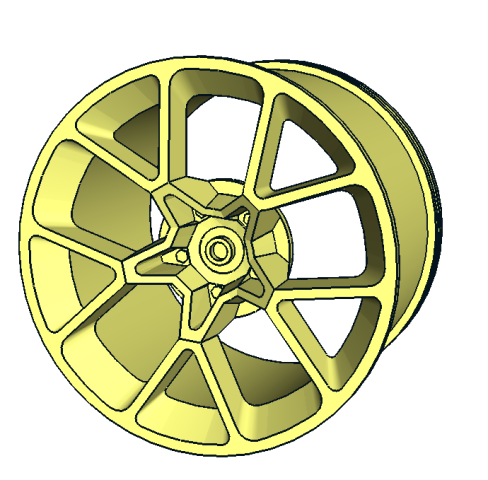

Some details still missing, but I'm getting close...


Attached Files Thumbnail(s)

Reply
RE: Neu Bugatti Technic Parts
#17
(2018-06-21, 15:20)Philippe Hurbain Wrote: Some details still missing, but I'm getting close...

Wonderfull pictures, thanks
Reply
RE: Neu Bugatti Technic Parts
#18
(2018-06-21, 15:56)Thorsten Wrote:
(2018-06-21, 15:20)Philippe Hurbain Wrote: Some details still missing, but I'm getting close...

Wonderfull pictures, thanks
Now on PT! http://www.ldraw.org/cgi-bin/ptdetail.cg...383p01.dat
Clearly wheel rims are in the "tough to model" category...
Reply
RE: Neu Bugatti Technic Parts
#19
(2018-06-22, 13:16)Philippe Hurbain Wrote:
(2018-06-21, 15:56)Thorsten Wrote: Wonderfull pictures, thanks
Now on PT! http://www.ldraw.org/cgi-bin/ptdetail.cg...383p01.dat
Clearly wheel rims are in the "tough to model" category...

Congrats! They look very good Smile
Reply
RE: Neu Bugatti Technic Parts
#20
(2018-06-22, 13:16)Philippe Hurbain Wrote:
(2018-06-21, 15:56)Thorsten Wrote: Wonderfull pictures, thanks
Now on PT! http://www.ldraw.org/cgi-bin/ptdetail.cg...383p01.dat
Clearly wheel rims are in the "tough to model" category...

Oh wow !!!! Tanks for all.
Reply
RE: Neu Bugatti Technic Parts
#21
(2018-06-22, 13:16)Philippe Hurbain Wrote:
(2018-06-21, 15:56)Thorsten Wrote: Wonderfull pictures, thanks
Now on PT! http://www.ldraw.org/cgi-bin/ptdetail.cg...383p01.dat
Clearly wheel rims are in the "tough to model" category...

Hello,

Thank you for the wonderfull work, I just have one problem.

I downloaded the part, and the required subparts, but when I try to use the piece I end up with this.


Does anyone know what I'm doing wrong? All the parts are in the right folder.

Thank you.
Reply
RE: Neu Bugatti Technic Parts
#22
Hi Kevin,
Welcome here!
The only explanation I see is that you forgot to download the sub-subpart http://www.ldraw.org/cgi-bin/ptdetail.cg...383s02.dat ...
Reply
RE: Neu Bugatti Technic Parts
#23
(2018-06-25, 13:19)Philippe Hurbain Wrote: Hi Kevin,
Welcome here!
The only explanation I see is that you forgot to download the sub-subpart http://www.ldraw.org/cgi-bin/ptdetail.cg...383s02.dat ...

I've downloaded all the files and still had the same problem so I went loooking into the files, now to make clear I'm no expert at all in these files but decided to just take a look.

In the main file I see a reference to s\37383s00.dat and s\37383s01.dat so I decided to open these aswell.
In the file s\37383s00.dat from line 36 untill 45 I see multiple references to s/37383s02.dat (which contain the spokes), now since the since the file 37383s00 is already inside the s/ folder I decided to give it a go and remove the "s/" on these lines and when I now inserted the main model the spokes did appear, I'm just left with a couple of small holes next to them.


So I'm getting closer, but I am wondering if this is just on my machine, or if this is a general problem?
Reply
RE: Neu Bugatti Technic Parts
#24
I am puzzled...  It could be a folder mess (wrong folder tree structure), bad configuration of program. The screenshot comes from LDCad doesn't it? Maybe have a look at the part using LDView. This one will probably work since it pulls elements it misses from LDraw server.
Quote: I decided to give it a go and remove the "s/" on these lines and when I now inserted the main model the spokes did appear, I'm just left with a couple of small holes next to them.
Anyway you shouldn't have to modify the internal structure of parts/subparts. But your experiment is nonetheless interesting, the missing element causing holes is 5-16cyli.dat that should be in (Ldraw)/p folder.
So I strongly suggest that you download again the full LDraw library and reinstall it...
Reply
RE: Neu Bugatti Technic Parts
#25
(2018-06-26, 14:35)Philippe Hurbain Wrote: I am puzzled...  It could be a folder mess (wrong folder tree structure), bad configuration of program. The screenshot comes from LDCad doesn't it? Maybe have a look at the part using LDView. This one will probably work since it pulls elements it misses from LDraw server.
Quote: I decided to give it a go and remove the "s/" on these lines and when I now inserted the main model the spokes did appear, I'm just left with a couple of small holes next to them.
Anyway you shouldn't have to modify the internal structure of parts/subparts. But your experiment is nonetheless interesting, the missing element causing holes is 5-16cyli.dat that should be in (Ldraw)/p folder.
So I strongly suggest that you download again the full LDraw library and reinstall it...

Okay, thanks for the tip, I went ahead and downloaded the complete official and Unofficial parts zip files, deleted the existing files and reinstalled them.

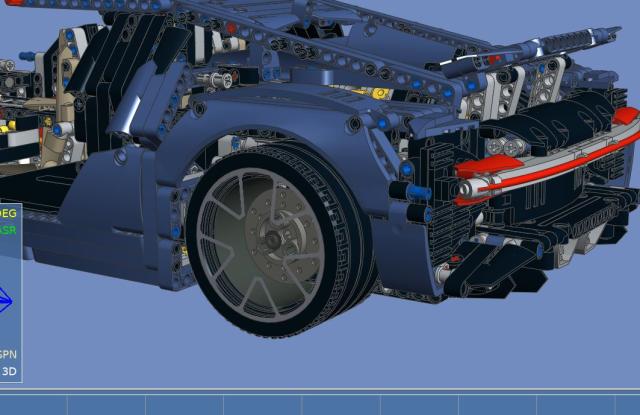

The result however is that we're back to the first image.

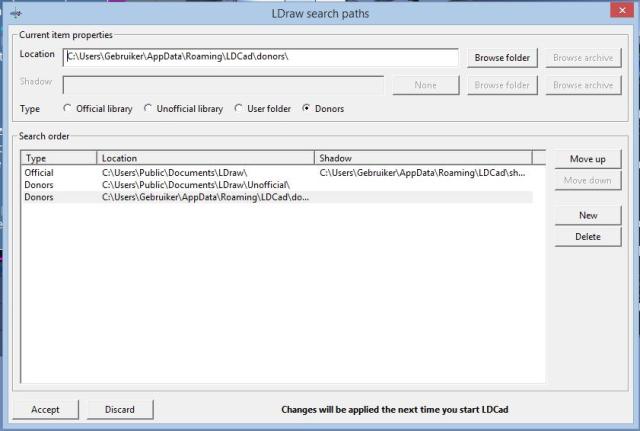

I've also taken a look at the library locations path in LDCad, but I don't see anything out of the ordinary.


In LDView however the part does show correctly


Just as you I'm puzzled aswell... Huh

EDIT:
Okay I feel like an idiot now... Just as I was taken another look at this post, I noticed that in the library paths of LDCad, the unofficial library was for some reason set as "Donor", I changed this to "Unofficial" and voila, the rim now shows pops up beautifully. (only just about half of my model dissapeared  Cry )
Rolleyes
Reply
RE: Neu Bugatti Technic Parts
#26
Yeah!!! Wink
Reply
RE: Neu Bugatti Technic Parts
#27
(2018-06-27, 7:06)Kevin Hendirckx Wrote: I changed this to "Unofficial" and voila, the rim now shows pops up beautifully. (only just about half of my model dissapeared  Cry )
Rolleyes
You might want to make sure each library has its own folder (so one is not in a sub of the other) as LDCad might behave unexpected in some cases otherwise.

Or use complete.zip and ldrawunf.zip without unpacking them.
Reply
RE: Neu Bugatti Technic Parts
#11
(2018-06-07, 19:34)Thorsten Wrote: 98138pr0039 Tile Round 1 x 1 with Bugatti Logo print
https://m.rebrickable.com/media/cache/6b...0cdac6.jpg
A small break between two complex parts...
http://www.ldraw.org/cgi-bin/ptdetail.cg...138pt1.dat
Reply
RE: Neu Bugatti Technic Parts
#28
(2018-06-07, 19:34)Thorsten Wrote: 35188 GEAR SHIFTER, W/ CROSS HOLE
https://m.rebrickable.com/media/cache/a7...6d0c89.jpg
Getting close...
[Image: 351881.png]
Reply
RE: Neu Bugatti Technic Parts
#29
(2018-07-03, 15:15)Philippe Hurbain Wrote:
(2018-06-07, 19:34)Thorsten Wrote: 35188 GEAR SHIFTER, W/ CROSS HOLE
https://m.rebrickable.com/media/cache/a7...6d0c89.jpg
Getting close...
[Image: 351881.png]

Loocks nice. Some people at Eurobrick will be happy when it's done.
Reply
RE: Neu Bugatti Technic Parts
#30
(2018-07-04, 10:11)Thorsten Wrote: Loocks nice. Some people at Eurobrick will be happy when it's done.
Now available on LDraw Parts Tracker! http://www.ldraw.org/cgi-bin/ptdetail.cg.../35188.dat
AFAIK it completes the list of Chiron Technic parts (still missing: license plate and... stickers!)
Reply
RE: Neu Bugatti Technic Parts
#31
(2018-07-04, 13:17)Philippe Hurbain Wrote:
(2018-07-04, 10:11)Thorsten Wrote: Loocks nice. Some people at Eurobrick will be happy when it's done.
Now available on LDraw Parts Tracker! http://www.ldraw.org/cgi-bin/ptdetail.cg.../35188.dat
AFAIK it completes the list of Chiron Technic parts (still missing: license plate and... stickers!)

I think we have a litle fail

1 15 0 0 0 1 0 0 0 1 0 0 0 1 18948.dat
1 72 0 0 0 1 0 0 0 1 0 0 0 1 18947.dat
1 72 80 0 -20 1 0 0 0 1 0 0 0 1 18947.dat
1 72 40 40 -10 1 0 0 0 1 0 0 0 1 18947.dat
1 14 0 0 30 -1 0 0 0 1 0 0 0 -1 35186.dat
1 25 40 0 -10 0 1 0 1 0 0 0 0 -1 35188.dat
1 1 0 0 50 -1 0 0 0 1 0 0 0 -1 35185.dat

[Image: 2_page_1.png]
Reply
RE: Neu Bugatti Technic Parts
#32
Yes, I noticed that flaw too, and I am busy correcting it Wink
Reply
RE: Neu Bugatti Technic Parts
#35
(2018-07-05, 18:01)Philippe Hurbain Wrote: Yes, I noticed that flaw too, and I am busy correcting it Wink
Done now!
Reply
RE: Neu Bugatti Technic Parts
#33
(2018-07-05, 15:40)Thorsten Wrote: I think we have a litle fail

1 15 0 0 0 1 0 0 0 1 0 0 0 1 18948.dat
1 72 0 0 0 1 0 0 0 1 0 0 0 1 18947.dat
1 72 80 0 -20 1 0 0 0 1 0 0 0 1 18947.dat
1 72 40 40 -10 1 0 0 0 1 0 0 0 1 18947.dat
1 14 0 0 30 -1 0 0 0 1 0 0 0 -1 35186.dat
1 25 40 0 -10 0 1 0 1 0 0 0 0 -1 35188.dat
1 1 0 0 50 -1 0 0 0 1 0 0 0 -1 35185.dat

Are there more errors?

Why is the white axle joiner pushed into the yellow driving ring?
The teeth on the yellow ring is barely touching the fingers on the blue gear?
Reply
RE: Neu Bugatti Technic Parts
#34
(2018-07-05, 19:16)Magnus Forsberg Wrote: Why is the white axle joiner pushed into the yellow driving ring?
The teeth on the yellow ring is barely touching the fingers on the blue gear?
Now I have the physical parts in hands, I'll be able to check!
Reply
RE: Neu Bugatti Technic Parts
#36
(2018-07-05, 19:16)Magnus Forsberg Wrote: Why is the white axle joiner pushed into the yellow driving ring?
Example is wrong. Should be
Code:
1 15 0 0 0 1 0 0 0 1 0 0 0 1 18948.dat
1 72 0 0 10 1 0 0 0 1 0 0 0 1 18947.dat
1 72 80 0 -10 1 0 0 0 1 0 0 0 1 18947.dat
1 72 40 40 0 1 0 0 0 1 0 0 0 1 18947.dat
1 14 0 0 40 -0.96592583 0.25881905 0 0.25881905 0.96592583 0 0 0 -1 35186.dat
1 25 40 0 0 0 1 0 1 0 0 0 0 -1 35188.dat
1 1 0 0 60 -1 0 0 0 1 0 0 0 -1 35185.dat
Quote:The teeth on the yellow ring is barely touching the fingers on the blue gear?
Nothing critical, but increased blue gear clutch tooth size.
Reply
« Next Oldest | Next Newest »



Forum Jump:


Users browsing this thread: 1 Guest(s)
Forum Jump:


Users browsing this thread: 1 Guest(s)
