Part Request 75972 Code Pilot


Part Request 75972 Code Pilot
#1
Philo was kind enough to mock up the Code Pilot for me years ago when I was building the LDraw file of the 8479 garbage truck. I'm now getting to the point when I'll be preparing the 1997 edition of Technicopedia soon and would appreciate being able to show the part in greater detail. Of course, I can just photograph it and I realize that this is a very unique part that has little demand, so I understand if there are higher priorities. I see that it has been sitting in the unofficial queue for a long time so I thought I would mention it.

Thanks.
Reply
Re: Part Request 75972 Code Pilot
#2
I'll have the part, but I have to find the time for doing the details. Maybe I can do the outer shape details. And do the inside later. I hope this would work for you.

/Max
Reply
Re: Part Request 75972 Code Pilot
#3
Max, you are welcome to improve the elements I already created: http://www.ldraw.org/cgi-bin/ptscan.cgi?q=code+pilot
Reply
Re: Part Request 75972 Code Pilot
#4
Philo, I know this Mockup. But there was still no time in the past.
And you may have recognized that the 3-blade-propellor with 24 tooth gear is still undone... Sorry for that.
As soon as I can find the time, I'll send you some files for the propellor...
BTW: I have to find the propellor itself, cause it got lost in mess...

/Max
Reply
Re: Part Request 75972 Code Pilot
#5
Yeah, I know, time...
I think I started the cover model at the time, I'll try to find it again and post it here.
Reply
Re: Part Request 75972 Code Pilot
#7
Not only I started it, but it was quite advanced (though there is still a lot of work to do!). Don't remember what distracted me at the time. I have not found again 32021s01.dat, but it's not difficult to figure...


Attached Files
.dat   32021.dat (Size: 44.38 KB / Downloads: 0)
Reply
Re: Part Request 75972 Code Pilot
#8
Thanks Philo, this is a great starting point.
I opened my unit yesterday in the very late evening. Do you want to create the pattern, when I finished the part?
/Max
Reply
Re: Part Request 75972 Code Pilot
#9
Quote:Do you want to create the pattern, when I finished the part?
OK, shouldn't be very hard...
Reply
Re: Part Request 75972 Code Pilot
#6
For my purposes, the inside details are unimportant. So if you could get the outside looking accurate (at least showing the 9V wire connections and the scanner) that would meet my needs.
Reply
Re: Part Request 75972 Code Pilot
#10
Just a short update...
I decided to do a rework, because a lot of measures had been wrong.
I'll upload a mockup-version, with the complete outside of the code pilot, when it's finished.
Process:
Part is on PT...
Next steps:
Create the top cover - Completely finished
Create the 2nd half of the "Laser Cone" - Completely finished
Create the transparent "Laser Magnifier" - Completely finished
Adapt Philo's 71375 (Keypad) to the corrected dimensions - Completely finished
Create/fix/adapt Philo's 32023.dat - Completely finished
Create/fix/adapt Philo's 32022.dat - Completely finished
Create Battery Springs - Completely finished
Create the Electric Brick incl. metal part - Completely finished
Create the Screws and add them to 32021c01/32021p01c01 - Completely finished
Create the Conductor Plate Dummy - Completely finished

/Max
Reply
Re: Part Request 75972 Code Pilot
#11
Quote:I decided to do a rework, because a lot of measure had been wrong.
Mmhhh... might explain why I stopped working on this one, if I reached a dead end. I hope you didn't spent too much time trying to reuse my wrong startup!
Reply
Re: Part Request 75972 Code Pilot
#12
It's growing...

Reply
Re: Part Request 75972 Code Pilot
#13
Wow!
Reply
Re: Part Request 75972 Code Pilot
#14
Wow, that is some incredible detail! Thanks for all your work on this. When you are done, I'll have to make a special render of 8479 with a close-up view of the Code Pilot.
Reply
Re: Part Request 75972 Code Pilot
#15
The part is finished so far. I prepared everything for loading it to the PT.
BUT this has to wait some hours, cause I'm not sure about the origins of some subparts and a also think about the correct shortcuts - not to say, that I need some minutes to take all the needed subparts and new primitives to the PT...

/Max
Reply
Re: Part Request 75972 Code Pilot
#18
Except of the Conductor Plate the complete Part is finished... :-)

/Max
Reply
Re: Part Request 75972 Code Pilot
#16

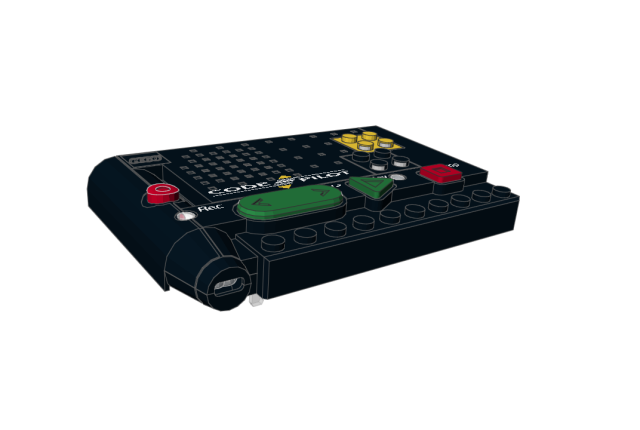

The visible area is done and uploaded!
[Image: 32022p01c01.png]
Please note that the LEGO logo isn't the right one. Before I continue with the part itself, I prepare the "old" 1973 logo and upload a corrected version. Done...

/Max
Reply
Re: Part Request 75972 Code Pilot
#17
LEGO Logo is corrected now!

/Max
Reply
Re: Part Request 75972 Code Pilot
#19

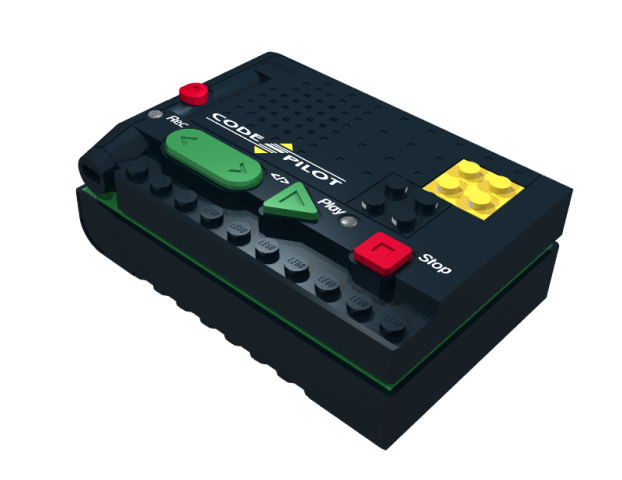

It's finally done:


/Max
Reply
Re: Part Request 75972 Code Pilot
#20
Looks amazing, thanks!
