[Complete] 80503pb01 lute instrument castle

[Dario Folliero]

Its possibile make the recent lute medieval instrument? 80503pb01

[Vincent Messenet]

Here is raw dat file extracted from Lego instructions app as well as raw graphical assets if it can help for the patterns

[Gerald Lasser]

Its possibile make the recent lute medieval instrument? 80503pb01

On the tracker without pattern

https://library.ldraw.org/tracker/33826

[Dario Folliero]

On the tracker without pattern

https://library.ldraw.org/tracker/33826

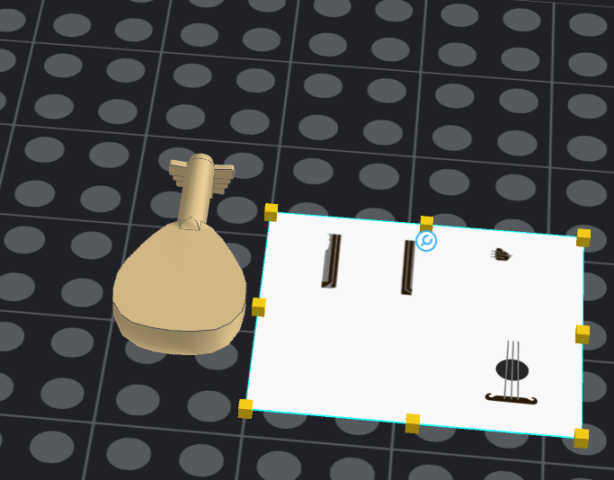

thanks. im new on the lego designer software... i use Studio... how can i import in Studio?... i try with part designer but seem its not the right way....
lute where recognize from studio part designer but i don able to add the print... can you suggest me something?

[Gerald Lasser]

thanks. im new on the lego designer software... i use Studio... how can i import in Studio?... i try with part designer but seem its not the right way....
lute where recognize from studio part designer but i don able to add the print... can you suggest me something?

Part designer is the way to do.

1) create some dir structure somewhere on your PC thant looks like:

./parts/
./parts/s

2.) download the individual files of the part and save them as follows:

./parts/80503.dat
./parts/s/80503s01.dat
./parts/s/80503s02.dat
./parts/s/80503s03.dat

3.) go to parts designer
- create new
- from scratch
- import
- select yout /part dir and choose 80503.dat
- chose insert

4.) go to connectivity tab

5) add desired connectivity (Accessories > Clip and > Bar > Bar) position two  bars at the neck of the instrument and at the back handles

6.) export to studio

[Dario Folliero]

Part designer is the way to do.

1) create some dir structure somewhere on your PC thant looks like:

./parts/
./parts/s

2.) download the individual files of the part and save them as follows:

./parts/80503.dat
./parts/s/80503s01.dat
./parts/s/80503s02.dat
./parts/s/80503s03.dat

3.) go to parts designer
- create new
- from scratch
- import
- select yout /part dir and choose 80503.dat
- chose insert

4.) go to connectivity tab

5) add desired connectivity (Accessories > Clip and > Bar > Bar) position two  bars at the neck of the instrument and at the back handles

6.) export to studio

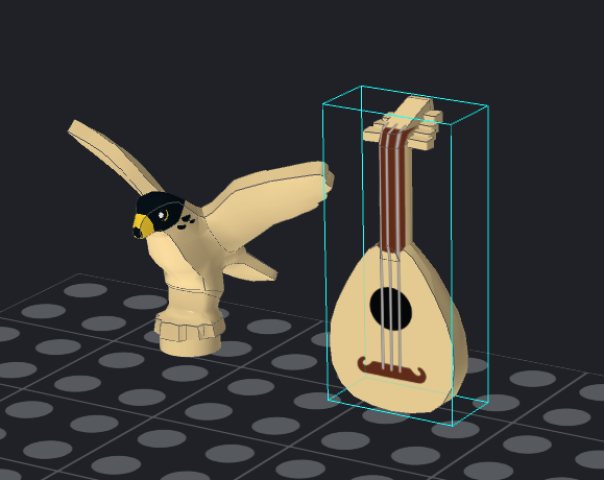

for lute i have problem to add pattern... for falcon i have an error at the import

[Vincent Messenet]

1. For the lute pattern:
The images I shared are raw graphical elements that can't be used as is. They need to be reworked before you can apply them as you try to do.

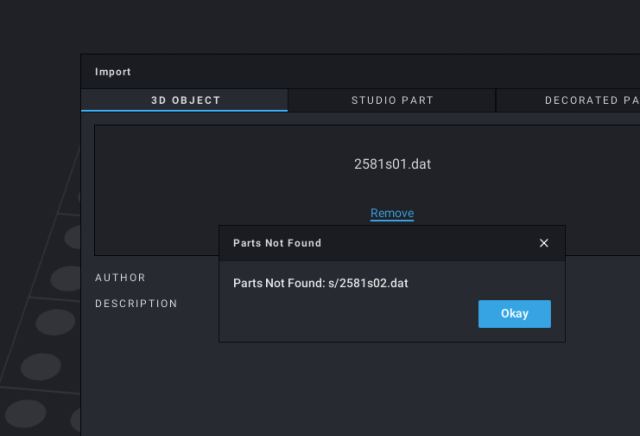

2. For the falcon:
You probably forgot to download 2581s02.dat and put it in ./parts/s/

[Dario Folliero]

1. For the lute pattern:
The images I shared are raw graphical elements that can't be used as is. They need to be reworked before you can apply them as you try to do.

2. For the falcon:
You probably forgot to download 2581s02.dat and put it in ./parts/s/

thanks a lot, im very happy for this part ))
