i want to make some sculptures building instructions,What should I do to be like the LEGO official building instruction?

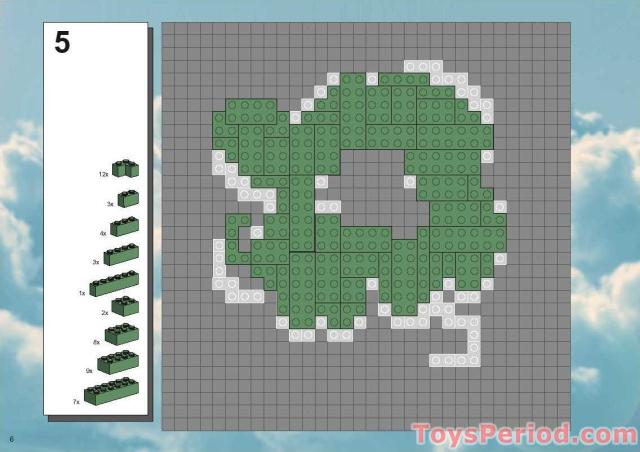

in top view and have fade steps,like the 3450set。


Attached Files Thumbnail(s)

Reply
RE: How to make this build instructions
#2
(2018-06-22, 3:36)han Wrote: i want to make some sculptures building instructions,What should I do to be like the LEGO official building instruction?
in top view and have fade steps,like the 3450set。

Hi Han,

Make your model in LDraw format with a new step for each layer, i.e. change in height.
Use LPub3D to render the instructions with fade step and a rotation step in the first step.

Example attached.

To force lines (edges) to be drawn use a slightly tilted ROTSTEP
0 ROTSTEP 89 0 1 ABS

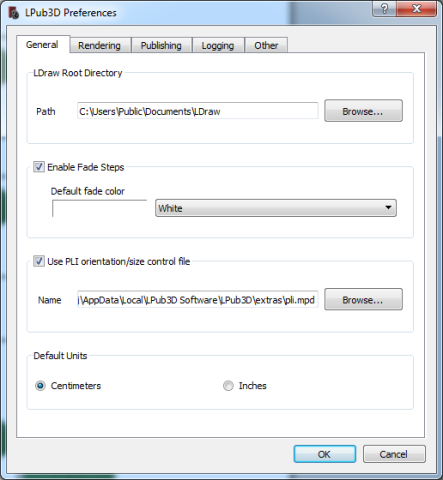

Set up Fade steps:




Attached Files
.ldr   sculpttest.ldr (Size: 591 bytes / Downloads: 2)
.pdf   sculpttest.pdf (Size: 107.56 KB / Downloads: 5)
Jaco van der Molen
lpub.binarybricks.nl
