**Proposal to change points of origin**

2014-03-30, 22:03 (This post was last modified: 2014-04-02, 4:47 by Ben Supnik.)

Hello to all,

I would like to suggest you the modifcation of the points of origin (or insertion) of parts with multiple horizontal floor or slope.

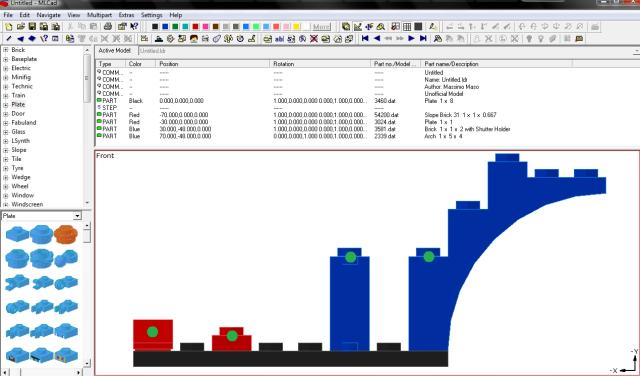

In Annex I report the current situation for two parts of this kind with respect to two normal parts (actual.jpg) and where it would be, for me, more convenient to move the origin point (proposal.jpg). The green points represent the points of origin of the parts, in the top you can see the list of parts (with their position) in both cases.

Currently, for parts with more coupling planes, there is chosen as the reference plane the highest plane.

For some parts of the slope, which does not expect to have pieces on himself, it is chosen as the origin the plan to which they support, while for others the highest floor, as if they were bricks of standard height.

This modification would allow you to use a simple sort function to sort the parts of a model from the bottom up, without having to re-check that the parts are in the right order for a real coupling.

I can imagine that it is a long job to find and change all the parts that require it, but then you would have the advantage of finding any alignment issues since only text files, without graphing.

At the end, I report a partial list of items that would be subject to change.

I am not aware of rules in the implementation of the parts against my proposal.

Massimo

Parts with multiple floor:

2339 - Arch 1 x 5 x 4

2399 - Wedge 3 x 4

4856 - Wedge 6 x 4 inverted

4865 - Panel 1 x 2 x 1 (both version a adn b and derivated like 4865d01, 4865d02, 4865p06 and 4865p18)

6055 - Panel wall 6 x 6 x 6 corner

6060 - Arch 1 x 6 x 3 & 1/3 with curved top

6066 - Brick 4 x 8 x 2.333 turret top

6072 - Brick 7 x 7 x 2.333 turret quarter

6081 - Brick 2 x 4 x 1 & 1/3 with curved top

6082 - Panel 4 x 10 x 6 rock rectangular

6091 - Brick 2 x 1 x 1 & 1/3 with curved top

6108 - Arch 1 x 12 x 3

6231 - Panel 1 x 1 x corner with rounded corners

13965 - Arch 1 x 3 x 3

30099 - Arch 1 x 5 x 4 inverted

30116 - Panel 14 x 14 x 2.667 quarter saucer top (and derivated like 30116ps0, 30116p6u and 30116p6v)

30117 - Panel 10 x 10 x 2.333 quarter saucer top (and derivated like 30117p6u and 30117p6v)

30201 - Panel 10 x 10 x 2.333 corner base

30272 - Arch 2 x 12 x 6 with grooves

30274 - Brick 2 x 3 x 3 with lion's head carving and cutout

30413 - Panel 1 x 4 x 1 with rounded corners

30613 - Arch 3 x 6 x 5

41761 - Wedge 6 x 8 x 2 triple inverted

42021 - Wedge 6 x 8 x 2 triple inverted (and derivated like 42021d01)

43713 - Wedge 6 x 4 tripple curved inverted

48490 - Panel wall 3 x 8 x 6

50373 - Wedge 3 x 4 with stud notches

76768 - Zrch 1 x 5 x 4 with reinforced tip

87611 - Plane bottom 6 x 10 x 1

87615 - Plane top 6 x 10 x 1

87616 - Plane rear 6 x 10 x 4

88292 - Arch 1 x 3 x 2

93095 - Panel 1 x 2 x 1 with thin central divider and rounded corners

91501 - Panel 2 x 2 x 1 corner with rounded corners

Parts slope

2875 - Slope brick 45 2 x 6 x 0.667

3299 - Slope brick 33 2 x 4 double

3300 - Slope brick 33 2 x 2 double

4515 - Slope brick 10 6 x 8 (and derivated like 4515p02 and 4515p03)

4854 - Slope brick 45 4 x 4 double inverted with open center

4871 - Slope brick 45 4 x 2 double inverted with open center

6191 - Brick 1 x 4 x 1 & 1/3 with curved top

6192 - Brick 2 x 4 with curved top

11477 - Slope brick curved 2 x 1

15068 - Slope brick curved 2 x 2 x 0.667 (and derivated like 15068p01)

52501 - Slope bricj 45 6 x 1 double inverted with open center

54200 - Slope brick 31 1 x 1 x 0.667

61068 - Slope brick curved 2 x 4 without underside studs (and derivated like 61068p01)

72454 - Slope brick 45 4 x 4 double inverted with center holes

85984 - Slope brick 31 1 x 2 x 0.667

88930 - Sloep brick curved 2 x 4 with underside studs (and derivated like 88930p01)

93273 - Slope brick curved 4 x 1 double (and derivated like 93273pk0)

I would like to suggest you the modifcation of the points of origin (or insertion) of parts with multiple horizontal floor or slope.

In Annex I report the current situation for two parts of this kind with respect to two normal parts (actual.jpg) and where it would be, for me, more convenient to move the origin point (proposal.jpg). The green points represent the points of origin of the parts, in the top you can see the list of parts (with their position) in both cases.

Currently, for parts with more coupling planes, there is chosen as the reference plane the highest plane.

For some parts of the slope, which does not expect to have pieces on himself, it is chosen as the origin the plan to which they support, while for others the highest floor, as if they were bricks of standard height.

This modification would allow you to use a simple sort function to sort the parts of a model from the bottom up, without having to re-check that the parts are in the right order for a real coupling.

I can imagine that it is a long job to find and change all the parts that require it, but then you would have the advantage of finding any alignment issues since only text files, without graphing.

At the end, I report a partial list of items that would be subject to change.

I am not aware of rules in the implementation of the parts against my proposal.

Massimo
