Idea for LUA script to create a knolling layout


RE: Idea for LUA script to create a knolling layout
#4
I made some adjustments to the script to reset rotation and prepare for inlining. I'm not sure how to inline in LDCad script so here I might need Roland.

But if you inline before running it it's starting to look like something

Code:
-- Function to get the X, Y (min), and Z dimensions of a subfile using its bounding box function getSubfileDimensions(subfile)   local minVec = subfile:getBoundingBoxMin()   local maxVec = subfile:getBoundingBoxMax()   return maxVec:getX() - minVec:getX(), minVec:getY(), maxVec:getZ() - minVec:getZ()  -- Return width, minY, and depth end -- Function to sort subfiles by their combined XZ size function sortSubfilesBySizeXZ(a, b)   local widthA, _, depthA = getSubfileDimensions(a)   local widthB, _, depthB = getSubfileDimensions(b)   local sizeA = widthA * depthA   local sizeB = widthB * depthB   return sizeA < sizeB end -- Function to reset the rotation of a part to identity function resetPartRotation(part)   local identityMatrix = ldc.matrix()   identityMatrix:setIdentity()   part:setOri(identityMatrix) end -- Function to check if a part is a submodel and print its name if it is function checkAndPrintSubmodel(part)   local subfile = part:getSubfile()   if subfile:isModel() and subfile:getRefCount() > 0 then       -- print("Submodel name: " .. subfile:getFileName())       -- Do stuff here to inline the submodels   end end -- Function to layout parts in a knolling grid arrangement on the XY plane function knollingLayout()   local ses = ldc.session()   if not ses:isLinked() then       ldc.dialog.runMessage('No active model.')       return   end   local sel = ses:getSelection()   local cnt = sel:getRefCount()   if cnt < 2 then       ldc.dialog.runMessage('At least two items should be selected.')       return   end   local subfiles = {}   -- Collect all subfiles (Parts in the selection)   for i = 1, cnt do       local part = sel:getRef(i)       table.insert(subfiles, part)       checkAndPrintSubmodel(part)  -- Check and print submodel name if applicable   end   -- Sort subfiles by size (combined X and Z dimensions)   table.sort(subfiles, function(a, b)       return sortSubfilesBySizeXZ(a:getSubfile(), b:getSubfile())   end)   -- Determine grid dimensions and spacing   local gridSize = 20  -- Minimum grid size, consider part size + desired spacing   local xOffset = 0   local zOffset = 0   local rowWidth = 0   for i, part in ipairs(subfiles) do       local subfile = part:getSubfile()       local width, minY, depth = getSubfileDimensions(subfile)  -- X and Z dimensions, and minY for the Y position       -- Reset the part's rotation       resetPartRotation(part)       -- Set the part's position       local pos = ldc.vector(xOffset, minY, zOffset)       part:setPos(pos)       -- Update offset for next part       zOffset = zOffset + depth + gridSize  -- Move right to the next column       -- Keep track of the maximum width in the current row       rowWidth = math.max(rowWidth, width + gridSize)       -- Check if we need to start a new row       if zOffset + depth > gridSize * 100 then  -- Assuming the grid is 10 columns wide           xOffset = xOffset + rowWidth           zOffset = 0 -- Move down to the next row           rowWidth = 0  -- Reset row width for the new row       end   end end -- Register the macro for the knolling layout function register()   local macro_lo = ldc.macro('Perform knolling layout')   macro_lo:setHint('Arrange elements in a knolling layout based on size in XY plane with Z = 0.')   macro_lo:setEvent('run', 'knollingLayout') end register()

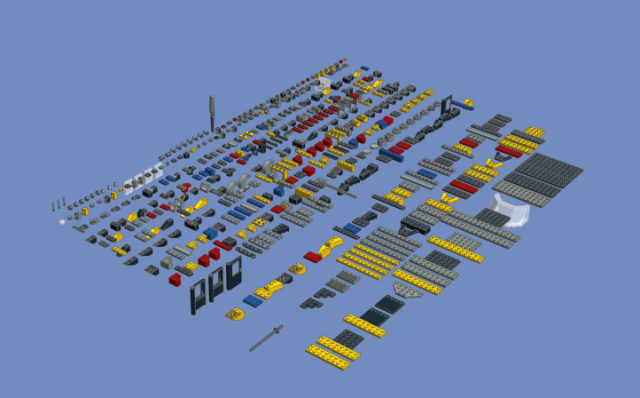

Attached Files Thumbnail(s)
