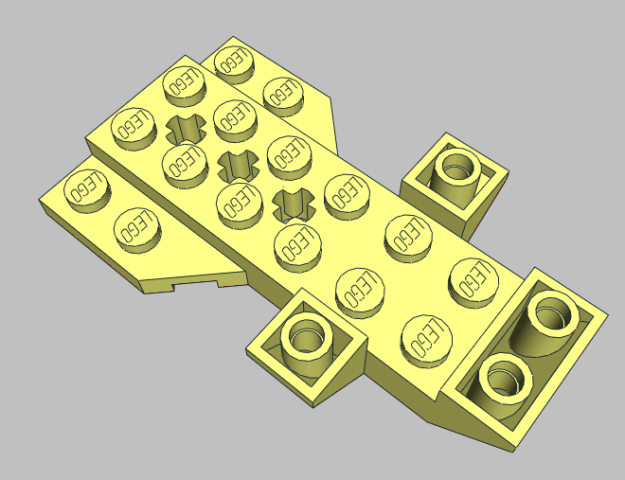

I've made the new car base.

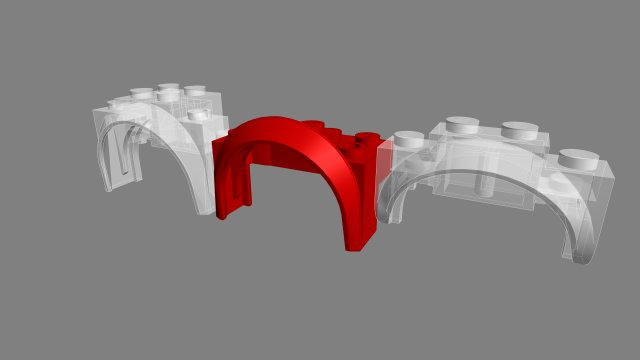

And now I have the mudguard ready. Only need the number, and a working description...



[Gerald Lasser]

I finally got the train base 55455 (without the battery lid, unfortunately), that Trainbase is long overdue!

[SNIPE]

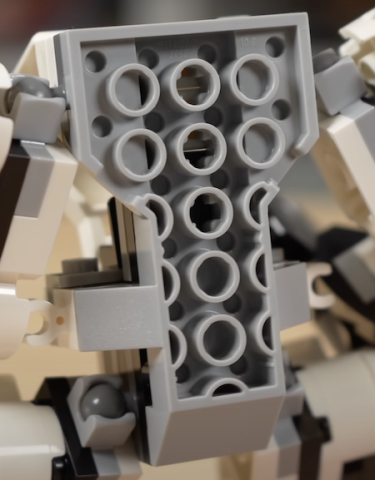

Just noticed this new part:



 [/url][url=https://m.youtube.com/watch?v=ZgCfizlGFvg]https://m.youtube.com/watch?v=ZgCfizlGFvg

It's a 2x2 tile with two quarter round cutouts

or if placed at 45 degrees more than how it is placed in the picture I guess you could call it a 2x2 tile with triangular ends and two round cutouts

[Philippe Hurbain]

Working on cupboard and door 2656/2657

[Philippe Hurbain]

Working on cupboard and door 2656/2657

Done
https://www.ldraw.org/cgi-bin/ptdetail.c...s/2656.dat
https://www.ldraw.org/cgi-bin/ptdetail.c...s/2657.dat

[Mark Kennedy]

And now I have the mudguard ready. Only need the number, and a working description...

What sets do they appear in? You may be able to get the numbers from Brickset.

[Magnus Forsberg]

What sets do they appear in?

From not yet released sets comming in March 2023.

[Magnus Forsberg]

Philo ended up fixing 77823 because it was too big a task for me. 😅

Here is a complete loop. Everything lines up very well, once you figure out where to position the first section, before the initial rotation.

Code:

0 FILE main.ldr
0 Author: Magnus Forsberg [MagFors]
0 !LICENSE Redistributable under CCAL version 2.0 : see CAreadme.txt
1 0 0 -8 -90 1 0 0 0 1 0 0 0 1 75539.dat
1 38 0 0 0 1 0 0 0 1 0 0 0 1 77822.dat
1 0 80 -14.5 -30 -1 0 0 0 1 0 0 0 -1 61332.dat
1 0 80 -14.5 -70 -1 0 0 0 1 0 0 0 -1 61332.dat
0 STEP
1 38 -20 -175.546 204.065 1 0 0 0 0.5 -0.866 0 0.866 0.5 subModel-1.ldr
0 STEP
1 38 0 -314.494 214.503 1 0 0 0 0 -1 0 1 0 subModel-1.ldr
1 38 20 -440.047 154.069 1 0 0 0 -0.5 -0.866 0 0.866 -0.5 subModel-1.ldr
1 38 40 -518.561 38.955 1 0 0 0 -0.866 -0.5 0 0.5 -0.866 subModel-1.ldr
0 STEP
1 38 60 -529 -99.993 1 0 0 0 -1 0 0 0 -1 subModel-1.ldr
1 38 80 -468.567 -225.546 1 0 0 0 -0.866 0.5 0 -0.5 -0.866 subModel-1.ldr
1 38 100 -353.454 -304.061 1 0 0 0 -0.5 0.866 0 -0.866 -0.5 subModel-1.ldr
0 STEP
1 38 120 -214.506 -314.501 1 0 0 0 0 1 0 -1 0 subModel-1.ldr
1 0 220 -139.495 -266.507 0 -1 0 -0.866 0 0.5 -0.5 0 -0.866 61332.dat
1 0 100 -139.504 -266.51 0 -1 0 -0.866 0 0.5 -0.5 0 -0.866 61332.dat
0 STEP
1 38 160 0 -100 -1 0 0 0 1 0 0 0 -1 77822.dat
1 0 160 -8 -10 -1 0 0 0 1 0 0 0 -1 75539.dat
0 FILE subModel-1.ldr
0 Author: Magnus Forsberg [MagFors]
0 !LICENSE Redistributable under CCAL version 2.0 : see CAreadme.txt
0 // 1 4 0 -264.5 -50 1 0 0 0 0 1 0 -1 0 3024.dat
1 38 20 -14.5 -50 1 0 0 0 1 0 0 0 1 77823.dat
1 0 80 -14.5 -50 0 0 1 0 1 0 -1 0 0 61332.dat
1 0 -40 -14.5 -50 0 0 1 0 1 0 -1 0 0 61332.dat

[James smith7743]

I've made the new car base. Think I can see the number, but not sure.



Partnumber is 3385. Now on the Tracker.

Hi I tried to download this file and use it in lego studio.io is this not its intended purpose? Because when I import it it's just studs no plates. Also has anyone looked at making the new 1x5 wedge tile from the march 2023 speed champions?

[Philippe Hurbain]

Hi I tried to download this file and use it in lego studio.io is this not its intended purpose? Because when I import it it's just studs no plates. Also has anyone looked at making the new 1x5 wedge tile from the march 2023 speed champions?

Most probably because you didn't load the subpart
https://www.ldraw.org/cgi-bin/ptdetail.c...385s01.dat
and placed it in ..\s folder relatively to matin part location.

[James smith7743]

Most probably because you didn't load the subpart
https://www.ldraw.org/cgi-bin/ptdetail.c...385s01.dat
and placed it in ..\s folder relatively to matin part location.

hi tried what you said made sure that 3885.dat was in the custom parts /parts folder
 and the 3885s02.dat was in the custom parts /parts /s folder but this is all i get

any help appreciated

image link   https://imgur.com/a/f9j0Lt6

going to assume that matin was supposed to be main (just wanted to check)

[N. W. Perry]

hi tried what you said made sure that 3885.dat was in the custom parts /parts folder
 and the 3885s02.dat was in the custom parts /parts /s folder but this is all i get

Do the same with 3885s01.dat, and you should be all set!

[James smith7743]

Do the same with 3885s01.dat, and you should be all set!

thankyou makes sense now

[N. W. Perry]

Tracking down all needed dependencies can be confusing, for sure!

Are there still tools that do this automatically? I feel like there used to be quite a few in the early days of LDraw, but they are no longer actively developed/supported. Or maybe there were only tools to do it on your local library copy, not downloading?

[Gerald Lasser]

Tracking down all needed dependencies can be confusing, for sure!

Are there still tools that do this automatically? I feel like there used to be quite a few in the early days of LDraw, but they are no longer actively developed/supported. Or maybe there were only tools to do it on your local library copy, not downloading?

Here's one by Chrstoph

https://forums.ldraw.org/thread-26497-po...l#pid47352
https://www.eurobricks.com/forum/index.p...-exporter/

Script is located here:
https://www.reum.it/ldraw-to-studio-exporter/index.php

It generates a ZIP File with all the unofficial files, try it, enter 3385 and click search.

[Orion Pobursky]

Tracking down all needed dependencies can be confusing, for sure!

Are there still tools that do this automatically? I feel like there used to be quite a few in the early days of LDraw, but they are no longer actively developed/supported. Or maybe there were only tools to do it on your local library copy, not downloading?

Stay tuned for such a feature in the new PT

[Travis Cobbs]

Tracking down all needed dependencies can be confusing, for sure!

Are there still tools that do this automatically? I feel like there used to be quite a few in the early days of LDraw, but they are no longer actively developed/supported. Or maybe there were only tools to do it on your local library copy, not downloading?

If you open a model that uses a missing unofficial part using LDView, by default it will download the part and all missing dependencies into the Unofficial directory inside your LDraw directory. If you need to copy specific files, you could clear the Unofficial directory, then open the model in question, then copy all of the files in Unofficial to wherever is needed for stud.io.

[Philippe Hurbain]

Hi I tried to download this file and use it in lego studio.io is this not its intended purpose? Because when I import it it's just studs no plates. Also has anyone looked at making the new 1x5 wedge tile from the march 2023 speed champions?

Working on them... RacingBricks video is awesome.

[Javier Orquera]

Hello: As I wrote before, I'm working on the Super Mario bar codes (I'd all of them). My problem now is: how to number the part, both sticker and part itself (currently using BL number, example 3068bpb1347.dat on sticker)? Any help will be appreciated.
Edit: Also, per suggestion of Philippe, I subparted the sticker in two and named it s/3068bsms01.dat and s/3068bsms02.dat respectivily. The "sm" between b and s01 and 2 stands for Super Mario, is this correct?

[Philippe Hurbain]

Also has anyone looked at making the new 1x5 wedge tile from the march 2023 speed champions?

Now on PT:
https://library.ldraw.org/tracker/search...escription

[MING YING CAI]

Oh sorry, I should have posted here. All the new panels are now available on PT!
2023 part numbers: 2459/p01/p02, 2387, 2389, 2391, 2393, 2395, 2403, 2457

Why I input part 2391 on Studio 2.23.1(1), but the output is not Technic Beam 1 x 7 Thick with Alternating Holes of LEGO 42149, only a cylinder like 1, sorry, I don’t know how to upload pictures, can you tell me what's the problem?

I already have it downloaded and put in the correct location
https://www.ldraw.org/cgi-bin/ptdetail.cgi?s=2391

[Philippe Hurbain]

Why I input part 2391 on Studio 2.23.1(1), but the output is not Technic Beam 1 x 7 Thick with Alternating Holes of LEGO 42149, only a cylinder like 1, sorry, I don’t know how to upload pictures, can you tell me what's the problem?

I already have it downloaded and put in the correct location
https://www.ldraw.org/cgi-bin/ptdetail.cgi?s=2391

I think that you miss the two subparts 71710s02.dat and 71710s01.dat (to be placed in parts\s folder).

[Philippe Hurbain]

And now I have the mudguard ready. Only need the number, and a working description...

In case you missed it, its 3387 https://www.newelementary.com/2023/02/le....html#more

[Magnus Forsberg]

In case you missed it, its 3387 https://www.newelementary.com/2023/02/le....html#more

Thanks for the hint. Now on the tracker. Make sure to also download the new primitive.

https://library.ldraw.org/tracker/29953

[MING YING CAI]

I think that you miss the two subparts 71710s02.dat and 71710s01.dat (to be placed in parts\s folder).

The parts are displayed correctly, thank you.

[SNIPE]

Thanks to newelementary, the part ID is now known for the new 1x3 plate with rounded ends.it

Here is the file (thanks to gerald lesser) if someone wants to add it to the parts tracker:

[Gerald Lasser]

Thanks to newelementary, the part ID is now known for the new 1x3 plate with rounded ends.it

Here is the file (thanks to gerald lesser) if someone wants to add it to the parts tracker:

I will submit it a bit later, currently I get the 500 Error

[Philippe Hurbain]

Going to do the Technic Ford GT  mudguards.

[Magnus Forsberg]

Just noticed this new part:

It's a 2x2 tile with two quarter round cutouts

or if placed at 45 degrees more than how it is placed in the picture I guess you could call it a 2x2 tile with triangular ends and two round cutouts

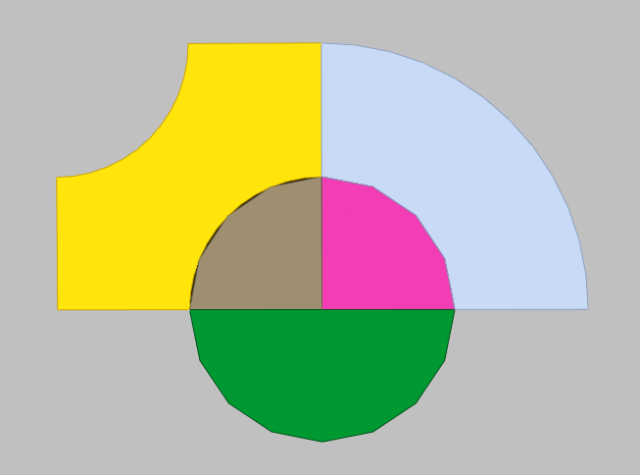

Hi-res on the design of the new 2x2 with cut-outs. Think it should be changed.

[Florent Faramond]

Going to do the Technic Ford GT  mudguards.

Hello Philippe,

Here you are the obj file extract from the app if it can help you.

[Florent Faramond]

Going to do the Technic Ford GT  mudguards.

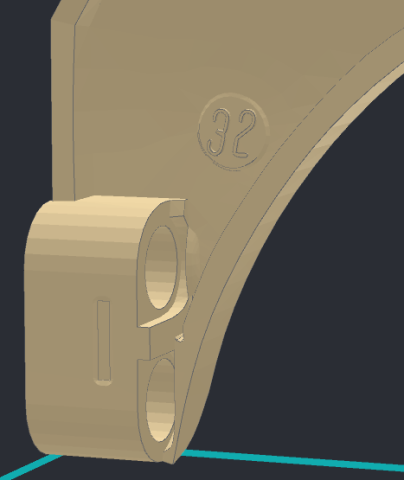

If you are motivated, you can add the '32' print



[Philippe Hurbain]

Here you are the obj file extract from the app if it can help you.

As usual I forgot to update status here  These parts are done:
https://library.ldraw.org/tracker/search...t+mudguard

If you are motivated, you can add the '32' print

Well, I'm not so motivated as these numbers are not normally visible in models, add more triangles... and more work

[Willy Tschager]

3816bp6f - Minifig Leg Right with Astro Pattern



Done:
https://library.ldraw.org/tracker/31213
https://library.ldraw.org/tracker/31214
https://library.ldraw.org/tracker/31215

[Willy Tschager]

3817bp6u.dat - Minifig Leg Left with Gold Circuitry and Orange Cable Pattern



Done:
https://library.ldraw.org/tracker/31292
https://library.ldraw.org/tracker/31293
https://library.ldraw.org/tracker/31294

[Willy Tschager]

3816bp6g.dat - Minifig Leg Right with White and Gold Markings Pattern



Done:

https://library.ldraw.org/tracker/31316
https://library.ldraw.org/tracker/31315

[Magnus Forsberg]

I have this one ready, but no partnumber yet.
https://brickset.com/article/98171/revie...ooper-mech



[Vincent Messenet]

I have this one ready, but no partnumber yet.
https://brickset.com/article/98171/revie...ooper-mech

Its design ID is 3536.


Got it from Brickflip's review: https://brickflips.com/lego-star-wars-75...view-2023/

[Gerald Lasser]

Working on the new Palm Leave 3565 from Dreamzzz

[Philippe Hurbain]

Working on 2471 24t clutch gear. Not sure when I'm done though, might take some time.

[Philippe Hurbain]

Working on 2471 24t clutch gear. Not sure when I'm done though, might take some time.

...done nonetheless...
https://library.ldraw.org/tracker/32409

[Evert-Jan Boer]

Working on Baseplate 64649

[Willy Tschager]

Working on Baseplate 64649

Wait! Reminds me of something? Right, here we go:

https://news.lugnet.com/cad/dat/parts/?n=4089

w.

[Evert-Jan Boer]

Wait! Reminds me of something? Right, here we go:

https://news.lugnet.com/cad/dat/parts/?n=4089

w.

Hm, never thought about closing the bottom for this part. This one can be placed upon a baseplate, so i have to leave at least 4LDU room for studs and model the bottom rectangles.
Maybe release a version with closed bottom first and see where it goes from there.

[Javier Orquera]

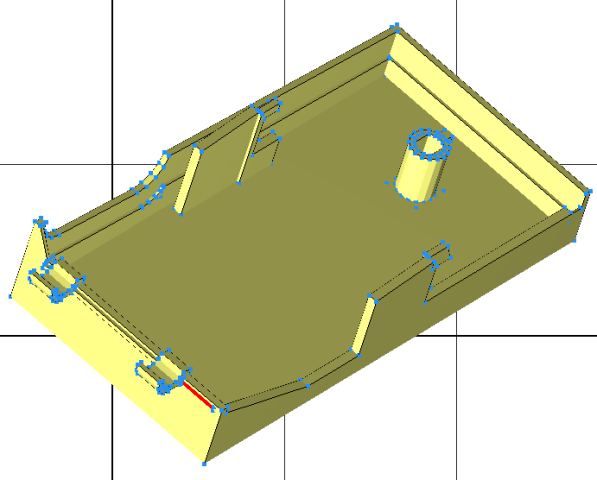

Hello: I am working on the old 12v Train switch acording to these web pages: https://www.eurobricks.com/forum/index.p...nd-repair/ and https://www.1000steine.de/de/gemeinschaf...&id=445246, with additional images from the net (specialy the bottom)

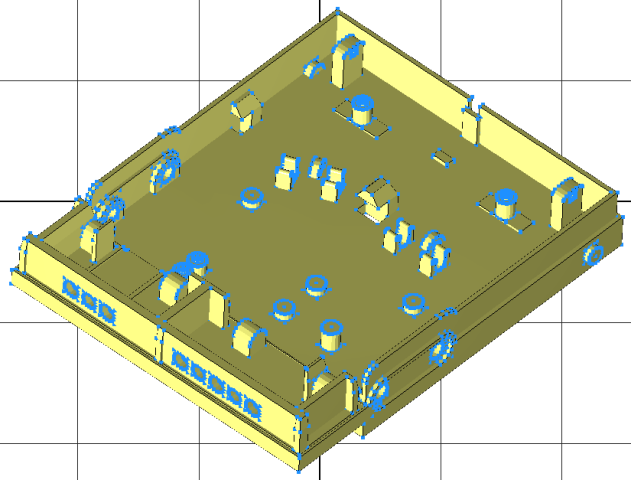

And have this as results:

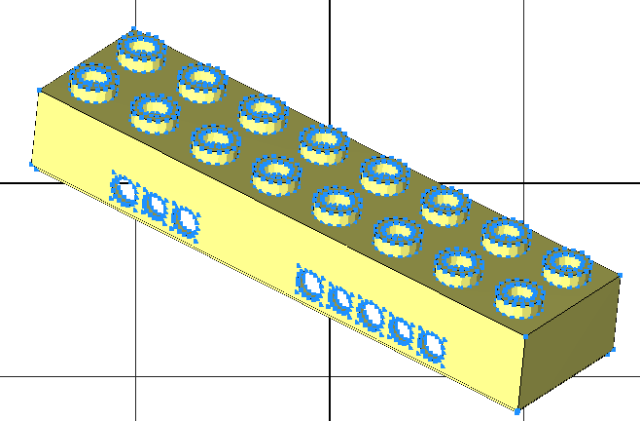

  Captura de pantalla 2023-08-29 172102.png (Size: 15.3 KB / Downloads: 233)




  Captura de pantalla 2023-08-29 171511.png (Size: 19.98 KB / Downloads: 230)

Acording to the webpages the numbers are as follow:

1. Base: 4110 (my deduction)

2. Butons: left 4112 and right 4111 (you can see it in the webpage)

3. "Brick" 2x8 cover: 4113 (my deduction)

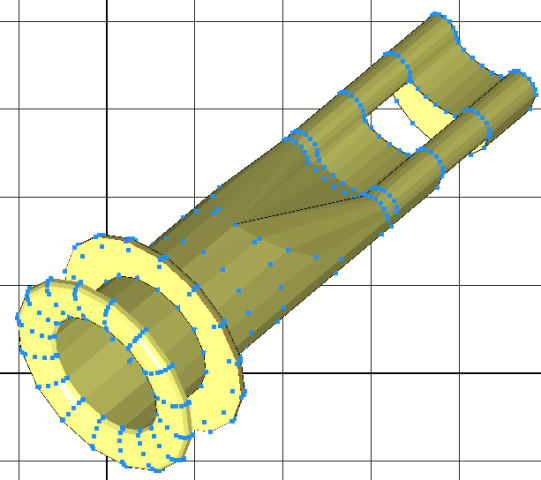

4. Male plug: my creation (need to modify part plug34.dat into a new version)

5. Female plug: my creation


And my question: anyone know the color of the internal "male plug"? I use color 297

[Jeff Jones]

Hello: I am working on the old 12v Train switch acording to these web pages: https://www.eurobricks.com/forum/index.p...nd-repair/ and https://www.1000steine.de/de/gemeinschaf...&id=445246, with additional images from the net (specialy the bottom)
And have this as results:













Acording to the webpages the numbers are as follow:

1. Base: 4110 (my deduction)

2. Butons: left 4112 and right 4111 (you can see it in the webpage)

3. "Brick" 2x8 cover: 4113 (my deduction)

4. Male plug: my creation (need to modify part plug34.dat into a new version)

5. Female plug: my creation


And my question: anyone know the color of the internal "male plug"? I use color 297

what is its part id?

[Jeff Jones]

when will you guys do work on the parts i requested?

[Orion Pobursky]

when will you guys do work on the parts i requested?

Hi. We're an all volunteer group with real life commitments. Authors choose their work based on time, part complexity, and, yes, requests. This means that it could be tomorrow, quite some time, or, if the part is complex or rare, years or never.

[Jeff Jones]

Hi. We're an all volunteer group with real life commitments. Authors choose their work based on time, part complexity, and, yes, requests. This means that it could be tomorrow, quite some time, or, if the part is complex or rare, years or never.

the parts that i request are i think are not complex i think the ben 10 is the most complex

[Philippe Hurbain]

Is someone working on  73763 /  73764?
https://www.bricklink.com/v2/catalog/cat...ge?P=73763
https://www.bricklink.com/v2/catalog/cat...ge?P=73764

[Philippe Hurbain]

Is someone working on  73763 /  73764?
https://www.bricklink.com/v2/catalog/cat...ge?P=73763
https://www.bricklink.com/v2/catalog/cat...ge?P=73764

...so I'll have a look !
