[Complete] 57792 needs a fix

[Sylvain Sauvage]

Hi all,

57792 Cylinder  6 x  3 x 10 Half with Taper and Four Pin Holes

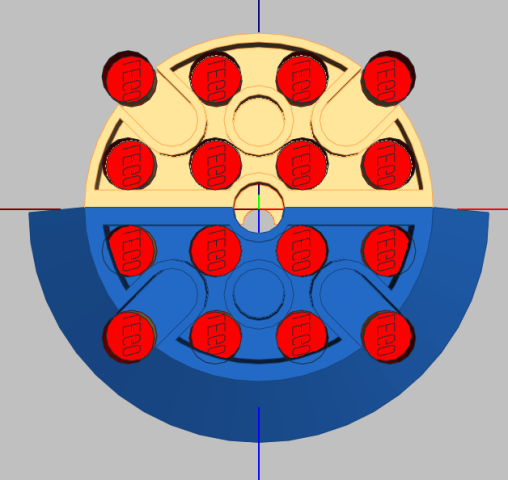

needs a small fix on its bottom: it collides with studs (external, flat side; not with the special notches).  The problem has been noticed when trying to build set 7990-1 in Studio.

I don’t know how the real part looks exactly but there’s a picture on Rebrickable that would indicate the shape is correct (that is, there’s no notches for the studs), so the problem would be the radius of the base or the thickness of the wall there.

Anyway, thanks to anyone who would tackle that

[Gerald Lasser]

Hi all,

57792 Cylinder  6 x  3 x 10 Half with Taper and Four Pin Holes

needs a small fix on its bottom: it collides with studs (external, flat side; not with the special notches).  The problem has been noticed when trying to build set 7990-1 in Studio.

I don’t know how the real part looks exactly but there’s a picture on Rebrickable that would indicate the shape is correct (that is, there’s no notches for the studs), so the problem would be the radius of the base or the thickness of the wall there.

Anyway, thanks to anyone who would tackle that

seems that the wall is too thick
https://i.ebayimg.com/images/g/JgUAAOSwC...-l1600.jpg

BI part is also sporting a thinner wall.

subfile s01 needs a touch up

[Magnus Forsberg]

Yes,
It should have the same bottom design as 6259, Cylinder  2 x  4 x  4



[Gerald Lasser]

I have it open, I'll fix it

DONE:
https://library.ldraw.org/parts/45944

Amazing that this was 14 years in the wild and it got unnoticed so far

[Sylvain Sauvage]

Woohoo, that was fast.
Thanks Gerald

Now, to have it included in Studio, with corrected collisions for the main file….
