RE: Compare 2 files for BOM
2022-03-16, 12:57 (This post was last modified: 2022-03-16, 12:57 by Stefan Frenz. Edit Reason: fixed typos )
2022-03-16, 12:57 (This post was last modified: 2022-03-16, 12:57 by Stefan Frenz. Edit Reason: fixed typos )
(2022-03-16, 10:34)Jaco van der Molen Wrote: I cannot find the button to export. Please point me to it?
The CSV export you propose would be ideal!
The csv-export is added in the just now uploaded current version. Please replace your ldinsp.jar file with the current one or start the installer after removing the old file (should download only the new jar and leave jdk/jfx untouched).

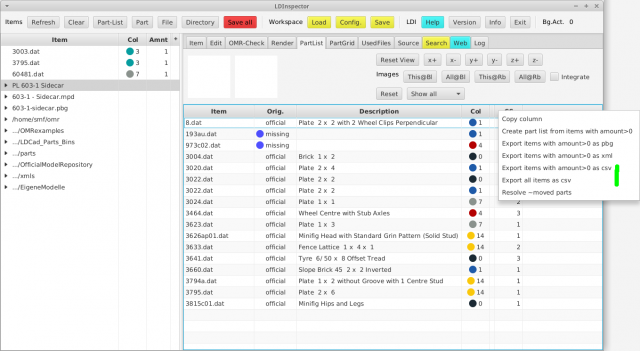

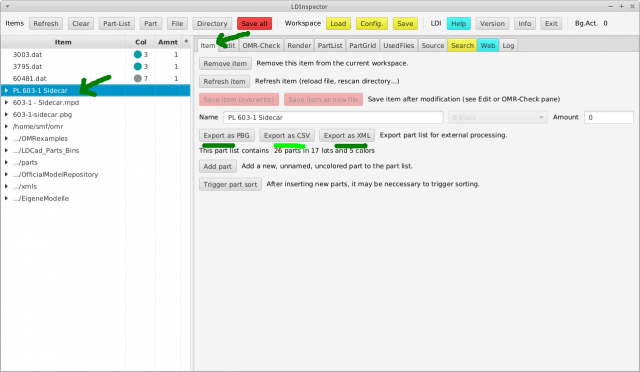

For all items LDInspector is capable reading, there is the "Item" tab with "Export as PBG", "Export as XML" and the new "Export as CSV" (pic 1). I added another way in the "PartList" tab via mouse right click in the column header and then "Export ..." which even removes the previously required intermediate step if you want to export some calculated value (old way: create PartList from column, click new item on the left, then export on the Item tab).
