Dimensioning in XYZ space

Dimensioning in XYZ space


Magnus Forsberg Offline
LDraw.org Moderator ******
James Jessiman Memorial PTSubmit
Posts: 2,023
Threads: 74
Joined: Dec 2011
Re: Dimensioning in XYZ space
#8
2015-06-28, 10:20
Yes, I can see why that might be confusing. The pictures on Mike's site all show the old 1.0.5 version.

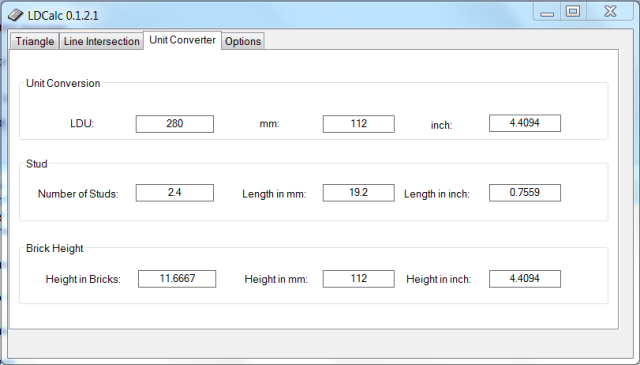

If you download the latest version, 1.2.1 you'll find this instead:



All you need to do is to calc the true dimensions from LDView

[attachment=1645]

x = 290+270 = 560
y = 256+24 = 280
z = 10.214+38 = 48.214

Your model is 28 x 2.4 studs wide and 11.6667 bricks high
