LDConfig file with LDD colors - Willy Tschager - 2019-09-27

I created a new LDConfig file using RGB colors from LDD:

LDConfig.ldr (Size: 32.34 KB / Downloads: 14)

with the following conventions:

* LDraw and BrickLink mostly share naming conventions for their colours.
* Where possible LEGO colour numbers were used.
* The LEGO numbers, names and LDD colours are taken directly from LEGO Digital Designer.
* Colours were compared with Ryan Howerter colour list.
* Rubber colours got their value from the correspondent solid or transparent colour.
* Some transparent colours were altered so that they can be displayed with their LDraw alpha level.
* Edge colours for solid, pearl, metallic colours were calculated the following way:
If the lightness value L in the HSL colours system was above 20% a Gray with 20% relative
luminance in the terms of RGB-Gray was used.
If the lightness value L in the HSL colours system was below 20% a Gray with 50% relative
luminance in the terms of RGB-Gray was used.
* Edge colours for transparent, chrome, glitter colours were calculated the following way:
The lightness value L in the HSL colours system was lowered by 20 %. If the lightness value L in
the HSL colours system was below 20% it was rosen by 20%.

What do you think of it?

Philo kindly compiled a corresponding visual file:

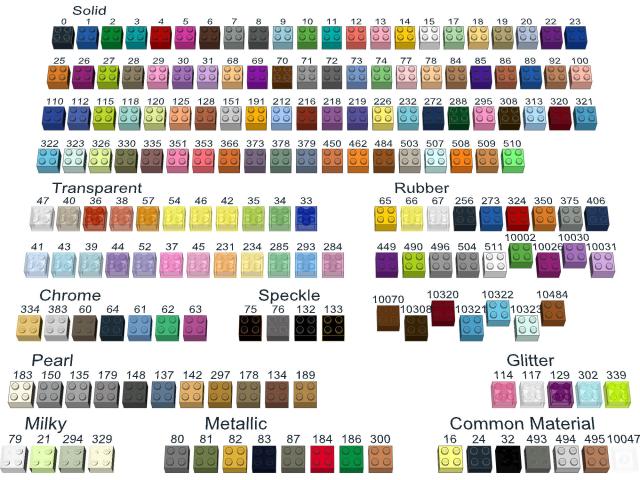

[Image: visualldconfig.png]

The old version for comparison:

[Image: visualldconfig.png]

RE: LDConfig file with LDD colors - Eugen - 2019-09-27

(2019-09-27, 12:34)Willy Tschager Wrote: What do you think of it?

I not see on new image part with color "Common Material > 10047" - is it OK?

"Trans Sticker" (10047) color works well in LeoCAD.

[Image: t4xx6ht.png]

And here is comparison of "Trans Sticker" (10047; on the left) and "Trans Clear" (47; on the right) on dark background.

[Image: dThLwKy.png]

(2019-09-27, 12:34)Willy Tschager Wrote: Philo kindly compiled a corresponding visual file:

Both images (when I try save it) has same name: visualldconfig.png

Should be visualldconfig-old.png and visualldconfig-new.png (or add its update date in names)

RE: LDConfig file with LDD colors - Philippe Hurbain - 2019-09-28

(2019-09-27, 23:33)Eugen Wrote: Should be visualldconfig-old.png and visualldconfig-new.png (or add its update date in names)

Actually they are stored in different Brickshelf folders. See the whole picture here: http://www.brickshelf.com/cgi-bin/gallery.cgi?f=404380

RE: LDConfig file with LDD colors - Willy Tschager - 2019-09-28

Personally speaking I'm fine with solid but would revert the trensparten colors back to the old version as those are optimized for alpha-channeling.

w.

RE: LDConfig file with LDD colors - Willy Tschager - 2019-10-17

Here's an updated version of the LDConfig.ldr with the old transparent colors restored:

LDConfig.ldr (Size: 32.34 KB / Downloads: 4)

Philo kindly provided a visual version of it.

PLMKWYT.

w.

RE: LDConfig file with LDD colors - Willy Tschager - 2019-12-03

This is the release candidate for the upcoming library update. Azure values have been corrected. Philo cross-checked the file.

LDConfig.ldr (Size: 32.34 KB / Downloads: 7)

RE: LDConfig file with LDD colors - Philippe Hurbain - 2019-12-04

(2019-12-03, 20:03)Willy Tschager Wrote: Philo cross-checked the file.

...but review carefully, I'm not so good at this kind of task Wink

RE: LDConfig file with LDD colors - Philippe Hurbain - 2019-12-05

Looks like PT needs an update to accept the new 10k rubber colors... Here is what I got when submitting Spike wheel with 10322 color.

Code:
Processing 49295p01.dat

File name is not used by an existing official file.

Error

11: Invalid color code '10322'. Must be between 0 and 511 or 0x2RRGGBB (hex digits A-F must be in upper case).

Submission of 49295p01.dat skipped due to errors

RE: LDConfig file with LDD colors - Willy Tschager - 2019-12-07

(2019-12-05, 8:45)Philippe Hurbain Wrote: Looks like PT needs an update to accept the new 10k rubber colors... Here is what I got when submitting Spike wheel with 10322 color.

Code:
Processing 49295p01.dat File name is not used by an existing official file. Error 11: Invalid color code '10322'. Must be between 0 and 511 or 0x2RRGGBB (hex digits A-F must be in upper case). Submission of 49295p01.dat skipped due to errors

Did you already ping Chris?

w.

RE: LDConfig file with LDD colors - Philippe Hurbain - 2019-12-07

Yes, it works now.
