(2019-07-07, 22:55)Gerald Lasser Wrote: I checked all the updates, I only find it in its initial release here: LDraw.org Parts Update 2009-02 - Sep 16, 2009

may be still on your HD?

(2019-07-07, 16:01)Gerald Lasser Wrote: Another part used in the Quantum Real Explorer that needs a rework, is the Brick 1 x 1 x 2/3 Round with Bar and Clip Vertical (Part 4735)

Currently the grooves on the part are only edge lines, which make it appear smooth during renders. I have reworked it, added proper grooves and a different clip. The clip needs to be a bit narrower though...





with narrower clip

(2019-07-07, 23:38)Orion Pobursky Wrote: Mom not a fan of the sharp ridges. The real part is more rounded. Maybe torii instead?

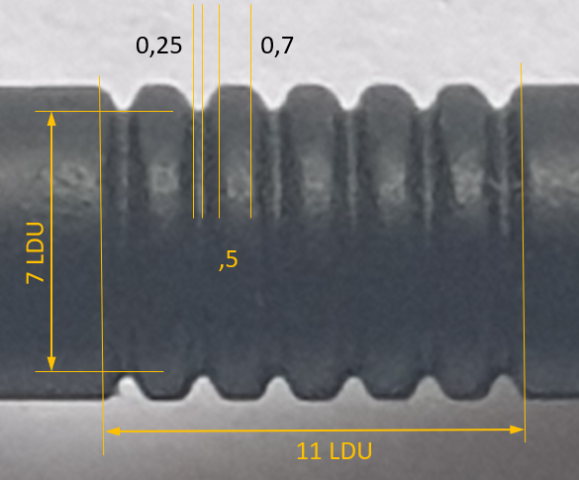

(2019-07-08, 6:42)Gerald Lasser Wrote: Here's a hi-res picture of the part. It'S more a trapezoid shape. I also don't like too sharp edges, but using tori here would give us a LOT of quads...
I go ahead with those measurements, the indents will be shallower then as I used 1 LDU in the mock-up vs. 0,5 I get from the picture

(2019-07-08, 8:58)Gerald Lasser Wrote: @all, thanks for your opinions, I go ahead with this one

(2019-07-08, 11:31)Magnus Forsberg Wrote: Isn't this very close to the minifig tool handle?
Spanner, screwdriver, hammer. 6246a-f and 11402a-i
That design is placed in subfiles. Could they be used?

(2019-07-08, 8:58)Gerald Lasser Wrote: @all, thanks for your opinions, I go ahead with this one

(2019-07-08, 11:49)Gerald Lasser Wrote: No, they have one too many groove...
I tried looking them up as well

(2021-04-13, 11:52)ashishkumarji Wrote: I think that we can't simply correct geometry

(2023-05-12, 15:00)Orion Pobursky Wrote: As this is an unofficial part, I would suggest redownloading it.

(2023-05-12, 15:59)Philippe Hurbain Wrote: Yes. I have a weird colored version too, but the one on PT is correct.

(2019-07-08, 1:03)Travis Cobbs Wrote: Since the part is so small, I can't be absolutely sure, but I don't think they are rounded. I think they are rectangular grooves with a flat outside. And using tori for features so small would be serious overkill. I think the walls of the divots are too sloped (should be closer to 90 degrees), resulting in the outer parts being too skinny.

(2023-05-12, 15:00)Orion Pobursky Wrote: As this is an unofficial part, I would suggest redownloading it.

(2019-06-26, 11:43)Gerald Lasser Wrote: I noticed yesterday that the snowshoe, coming with the current Arctic Sets, is actually another type.

Now comes the dilemma. In our library there is the 30284, the original one and the 11187 which is currently listed as an alias.

At BL and Brickset however, the 11187 is NOT the same design as the 30284. Moreover there is another variant, the 28263, which is an alias to 11187.

The 11187 is official, but in reality it has another origin that 30284. Compared to 30284 it has a short front end and a long backend.

Ideal would be to change 11187 to the correct geometry and add an alias for 28263.

With that approach a complete compatibility cannot be guaranteed due to the different lenghts and existting models may face collision issues (though I think there is only a slim chance...)

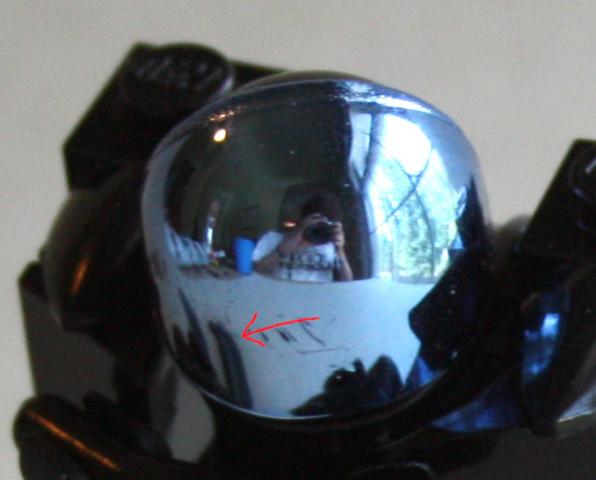

(2024-01-31, 22:05)Magnus Forsberg Wrote: I would say it is flat, but the geometry could be improved. The angle of the bottom front surface is not right.

(2024-01-31, 22:05)Magnus Forsberg Wrote: I would say it is flat, but the geometry could be improved. The angle of the bottom front surface is not right.

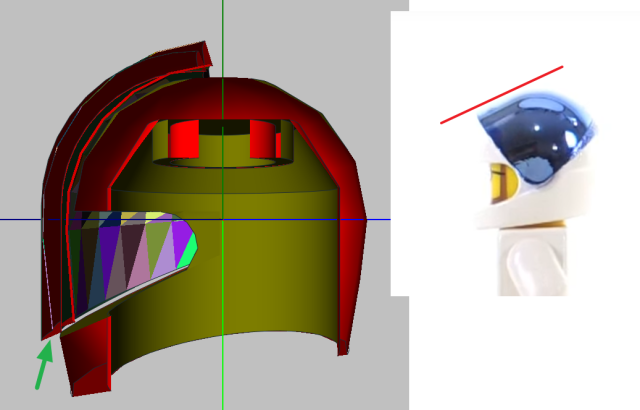

The green arrow show that the surface in a fresh download of part 23318 is more tilted.



This could be fixed, but not until someone decide to also correct the bad shape on helmet 2446.
https://forums.ldraw.org/thread-26653-post-47475.html#pid47475

(2024-02-01, 11:07)Grey Wrote: Also that's kind of crazy how much is left to fix on the helmet model, I had no idea...
