Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Willy Tschager - 2023-12-01
Guys,
some help with https://library.ldraw.org/tracker/32922 is needed.

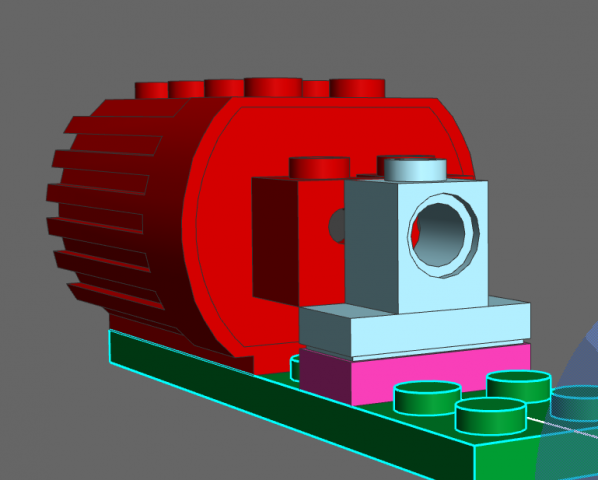

In case you own an Electric, Motor 4.5V Type 2 for 2-prong connectors with Middle Pin I'd like to know if the pin holes line up with the center of a technic pin hole or if the position in the official LDraw part as shown in this picture is correct:
Thanks. w.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Rene Rechthaler - 2023-12-01

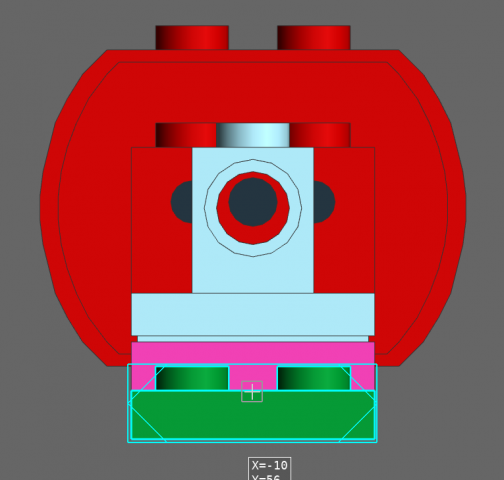

I only have the older version with two holes (and no metal reinforcement in the axle), and the holes are concentric with 32000/602.
http://www.peeron.com/scans/8700-1/1 shows that the electric switch can be used directly with the 3-hole Version:
1 16 0 64 80 -1 0 0 0 1 0 0 0 -1 73261.dat
(I can align mine that way, but not connect them because of the pin at the switch).
And the holes at the outside of the switch (for the plugs) are all 3mm (same as the pins) --> 3.5 LDU radius
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Rene Rechthaler - 2023-12-02
Do we need solid electric contacts too? Tried modeling the ones of my motor:
(then you dont even need the vision blocker anymore at the 2-hole version)
0 // Solid Connector
1 16 -10 31 50 .5 0 0 0 -1 0 0 0 .5 4-4ring7.dat
1 16 -10 31 50 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 -10 31 50 3.5 0 0 0 -1.5 0 0 0 3.5 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -10 29.5 50 0 0 3.5 0 -3.5 0 3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 29.5 50 0 0 3.5 0 -3.5 0 -3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 29.5 50 0 0 -3.5 0 -3.5 0 3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 29.5 50 0 0 -3.5 0 -3.5 0 -3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 56 3.5 0 0 0 0 3.5 0 -2.5 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -10 26 53.5 0 0 3.5 3.5 0 0 0 -3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 53.5 0 0 3.5 -3.5 0 0 0 -3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 53.5 0 0 -3.5 3.5 0 0 0 -3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 53.5 0 0 -3.5 -3.5 0 0 0 -3.5 0 1-4cyls.dat
1 16 -10 19 50 .5 0 0 0 1 0 0 0 .5 4-4ring7.dat
1 16 -10 19 50 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 -10 19 50 3.5 0 0 0 3.5 0 0 0 3.5 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -10 22.5 50 0 0 3.5 0 3.5 0 3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 22.5 50 0 0 3.5 0 3.5 0 -3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 22.5 50 0 0 -3.5 0 3.5 0 3.5 0 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 22.5 50 0 0 -3.5 0 3.5 0 -3.5 0 0 1-4cyls.dat
1 16 -10 26 45 3.5 0 0 0 0 3.5 0 -1 0 4-4disc.dat
1 16 -10 26 45 3.5 0 0 0 0 3.5 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 -10 26 45 3.5 0 0 0 0 3.5 0 1.5 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -10 26 46.5 0 0 3.5 3.5 0 0 0 3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 46.5 0 0 3.5 -3.5 0 0 0 3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 46.5 0 0 -3.5 3.5 0 0 0 3.5 0 1-4cyls.dat
0 BFC INVERTNEXT
1 16 -10 26 46.5 0 0 -3.5 -3.5 0 0 0 3.5 0 1-4cyls.dat
1 16 -10 26 50 3.5 0 0 0 1 3.5 0 0 3.5 4-4edge.dat
1 16 -10 26 50 3.5 0 0 0 1 -3.5 0 0 3.5 4-4edge.dat
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Willy Tschager - 2023-12-02
(2023-12-02, 12:57)Rene Rechthaler Wrote: Do we need solid electric contacts too? Tried modeling the ones of my motor:
(then you dont even need the vision blocker anymore at the 2-hole version)
Feel free to add it to u9373s01.dat.
https://www.ldraw.org/library/tracker/ref/policy/
"Once a part is released in the official parts library it is generally considered "fair game" for anyone to improve. Likewise, if someone makes a relatively small change to an official part (like BFCing it), other people should feel free to make other fixes to it".
w.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Rene Rechthaler - 2023-12-02
no, I dont want to add it to the s01, I would rather create s02 or a new part...
and this "connector" gets added in the body assembly.
Would this also need its outer shell or just the faces you can actually see?
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Magnus Forsberg - 2023-12-02
(2023-12-02, 14:58)Rene Rechthaler Wrote: no, I dont want to add it to the s01, I would rather create s02 or a new part...
and this "connector" gets added in the body assembly.
Would this also need its outer shell or just the faces you can actually see?
Yes, you're right.
We need to have this as 4 parts.
1 casing, with top and bottom studs, plastic ; u9372, used in all assys
1 back, with holes for the electric contact, plastic ; u9373, u9376, u9378,
1 stator, metal electric contact plates, missing
Together these 3 make the Body assemblies
1 rotor, axle, loose, to be animated rotating; u9377, u9374c01
Body assy + Axle assy = Motor complete; 6216a, 6216m, 6228a
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Rene Rechthaler - 2023-12-02
Arent there 4 Variants? (4V and 12V each in 2 and 3 hole versions, the old 12V is missing as an assembly)
The stator (the stator itself shouldnt be modeled, just the connectors) could be u9379, but maybe there are also different versions.
Who else has one of these parts? (My old motor has a different electrical contact than the one in the library)
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Rene Rechthaler - 2023-12-09
I was a bit suspicious so I opened a broken 4.5V train motor to check the Bühler-Motor:
https://www.bricklink.com/v2/catalog/catalogitem.page?P=x482&idColor=11#T=C&C=11
And yes: it is very possible that these motors are inside the Technic Motors too (although a bit modified...)
Should I model it too (Dimensions: Diameter 23,5mm, flat part 18,5mm, length 27,8mm, driving shaft 2mm)?
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Willy Tschager - 2023-12-09
(2023-12-09, 11:10)Rene Rechthaler Wrote: I was a bit suspicious so I opened a broken 4.5V train motor to check the Bühler-Motor:
https://www.bricklink.com/v2/catalog/catalogitem.page?P=x482&idColor=11#T=C&C=11
And yes: it is very possible that these motors are inside the Technic Motors too (although a bit modified...)
Should I model it too (Dimensions: Diameter 23,5mm, flat part 18,5mm, length 27,8mm, driving shaft 2mm)?
No. Invest your time in other parts.
w.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Orion Pobursky - 2023-12-09
(2023-12-09, 11:10)Rene Rechthaler Wrote: I was a bit suspicious so I opened a broken 4.5V train motor to check the Bühler-Motor:
https://www.bricklink.com/v2/catalog/catalogitem.page?P=x482&idColor=11#T=C&C=11
And yes: it is very possible that these motors are inside the Technic Motors too (although a bit modified...)
Should I model it too (Dimensions: Diameter 23,5mm, flat part 18,5mm, length 27,8mm, driving shaft 2mm)?
Don't get too far out into the weeds detailing the internals for electrical parts. Simple placeholders, if anything at all, are sufficient.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Willy Tschager - 2024-02-13
The pins of the back have been corrected:
https://library.ldraw.org/tracker/33235

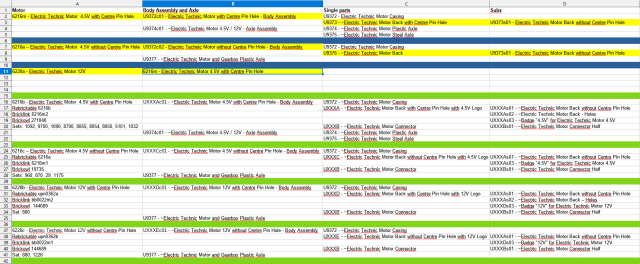

which would break all the models using it. We have therefor to obsolete the parts in yellow and submit the corrected parts with new numbers. Here is my proposal:
Where UXXXA is a new u9000 number.
Comments?
w.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Max Martin Richter - 2024-02-16
(2024-02-13, 17:39)Willy Tschager Wrote: The pins of the back have been corrected:
https://library.ldraw.org/tracker/33235
which would break all the models using it. We have therefor to obsolete the parts in yellow and submit the corrected parts with new numbers. Here is my proposal:
Where UXXXA is a new u9000 number.
Comments?
w.
If we are 100 % sure, that is correct now, then this is the way to go in my eyes.
RE: Height of electric pin holes of 6216m2 - Electric, Motor 4.5V Type 2 - Willy Tschager - 2024-03-16
All parts of the variants have been reorganized.
I case you wonder why I haven't used the old 6228 nomenclature: 6228 according to Digital Bricks is the Dolphin 9M. Also Rebrickable list a, b, and c variants of 6228 as dolphin. No site Re, BL o BO have a part number for the 12V motor with/without center pin hole.
w.
